1. Mini ISUZU ELF Diesel Fuel Delivery Truck
2. ISUZU 4JB1CN 98HP
3. 4-Cylinder In Line
5. 1000Gallon Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
Mini 98HP ISUZU Diesel Fuel Delivery Truck 1000Gallon Fuel Dispensing Trucks
Mini ISUZU 1000Gallong Fuel Dispensing Trucks 98HP
1. Mini ISUZU ELF Fuel Truck
2. ISUZU 4JB1CN 98HP
3. 4-Cylinder In Line
5. 4000L Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Hubei Runli Company specially Produces Different model ISUZU Fuel truck, the capacity of tank body from 3000L to 60000L.
| Specification |
the specification of 98HP ISUZU Diesel Fuel Delivery Truck 1000Gallon Fuel Dispensing Trucks:
Products Technical Specification | ||
Type | 4000L fuel tanker truck | |
Brand | ISUZU 4*2 | |
Cab | Power steering, Air Condition | |
Vehicle Description | ||
Overall dimensions（mm） | 5900×1990×2300 | |
Curb weight(vehicle) (kg) | 3,931 | |
Loading capacity (kg) | 3,200 | |
Max speed (Km/h) | 95-120 | |
Engine | ||
Mode | ISUZU 4JB1CN | |
Type | Diesel, 4-cylinder in line with water cooling, turbo-charging | |
Max. power/rotated speed | 72(KW) /98HP | |
Displacement(ML) | 2771 | |
Emission level | Euro 4 | |
Chassis Description | ||
Wheel base | 3360 | |
Front axle | 2T | |
Rear axle | 4.8T | |
Front tread / rear tread | 1385/1425 | |
Gear box | ISUZU MSB 5-speed | |
Brake system | Oil brake belt vacuum booster pump | |
Electric system | 24V | |
Tyres | 7.00-15 | |
Fuel tanker | ||
Capacity of tank body | 4,000Litres | |
Carbon steel Install diesel Fuel Pump | ||
Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. | |

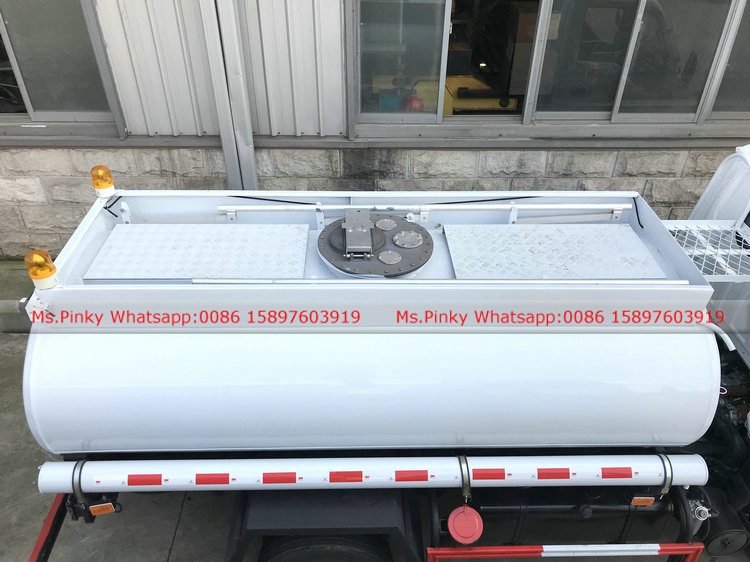

Manhole | On manhole on the top of tank body | |
ladder | Steel mounted at front, bolted top and bottom | |
walkway | Along the top of the tank, sand paint | |

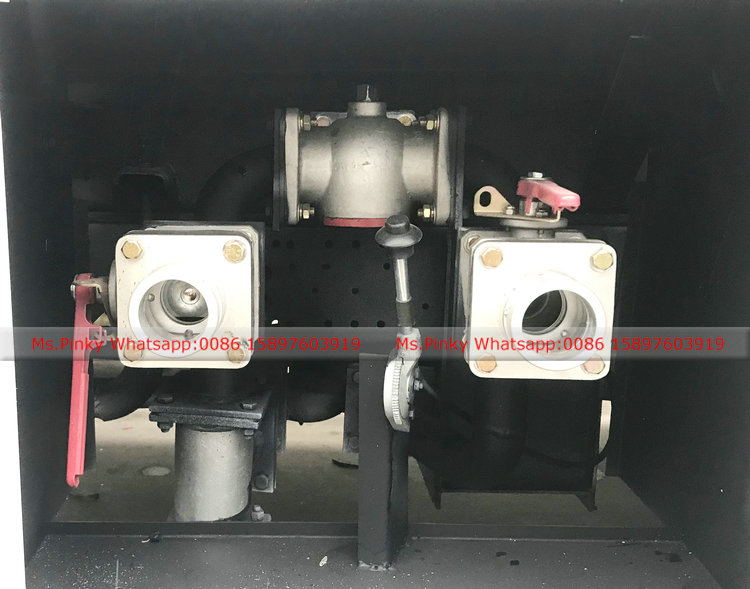

Cabinet | One at the side the tank covering the valve. | |
Painting | One anti corrosion and zinc-rich primer and final painting will be accordance with customer need. | |
| Pictures |

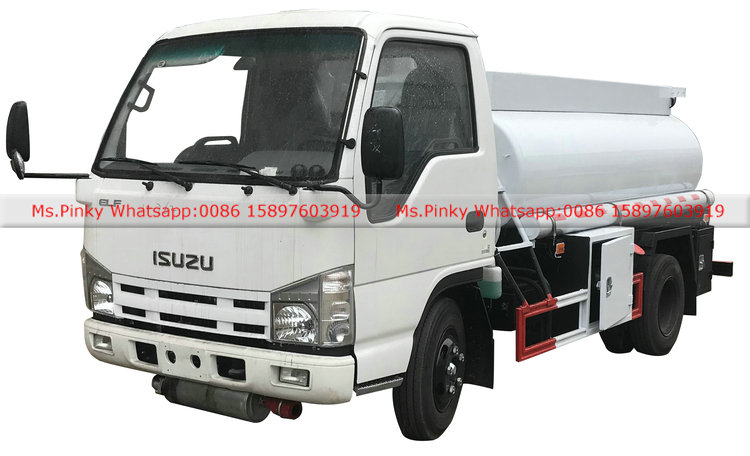

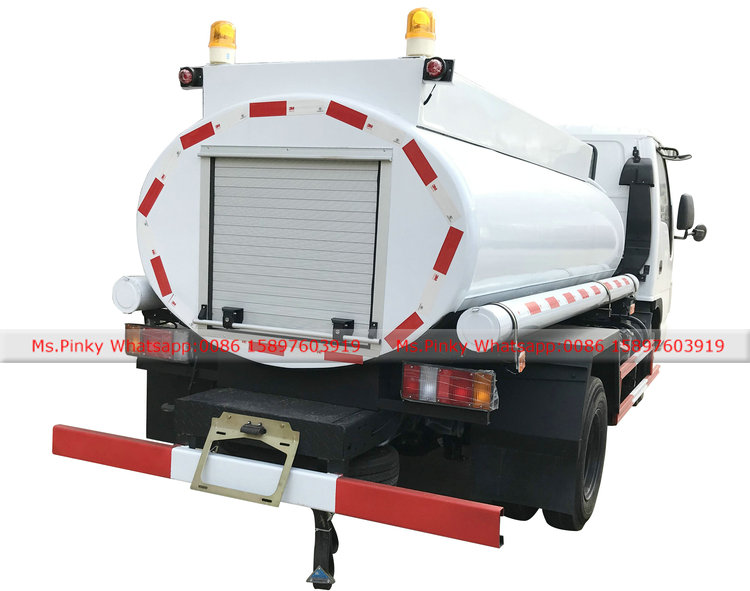

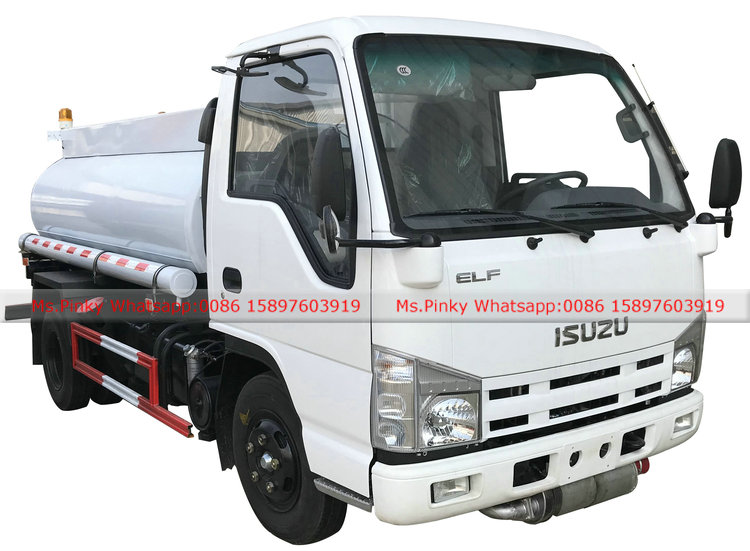

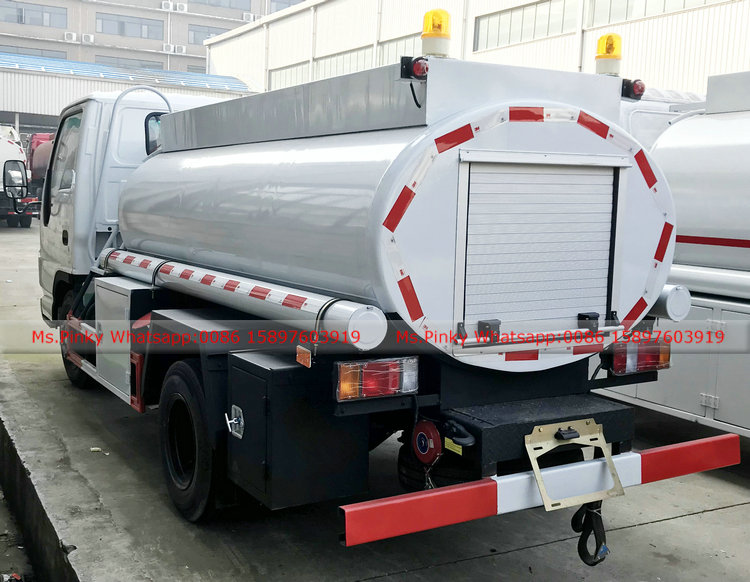

the picture of 98HP ISUZU Diesel Fuel Delivery Truck 1000Gallon Fuel Dispensing Trucks:
ISUZU Fuel Tank Truck, hydraulic pressure head.

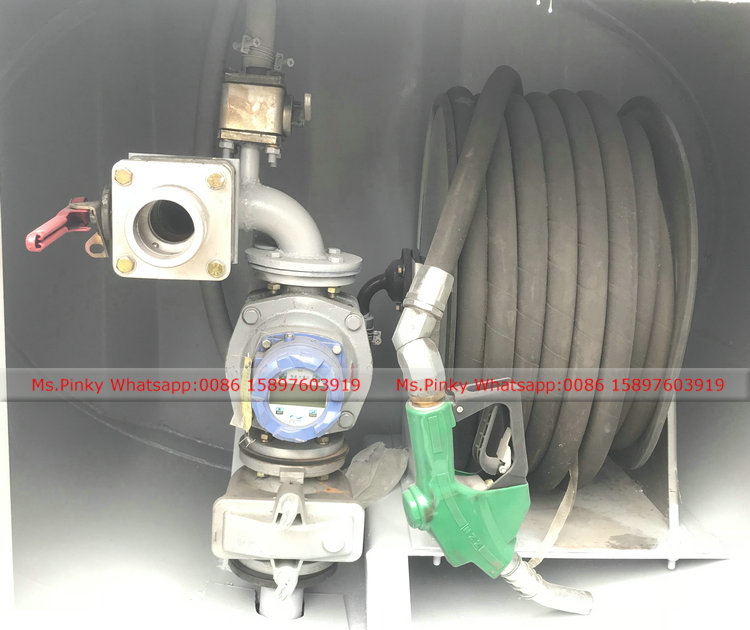

other optional equipment for ISUZU Fuel Truck:

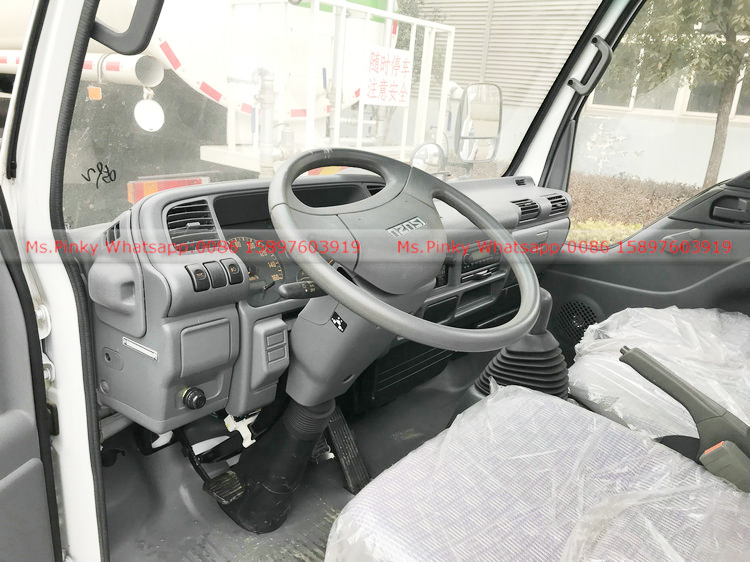

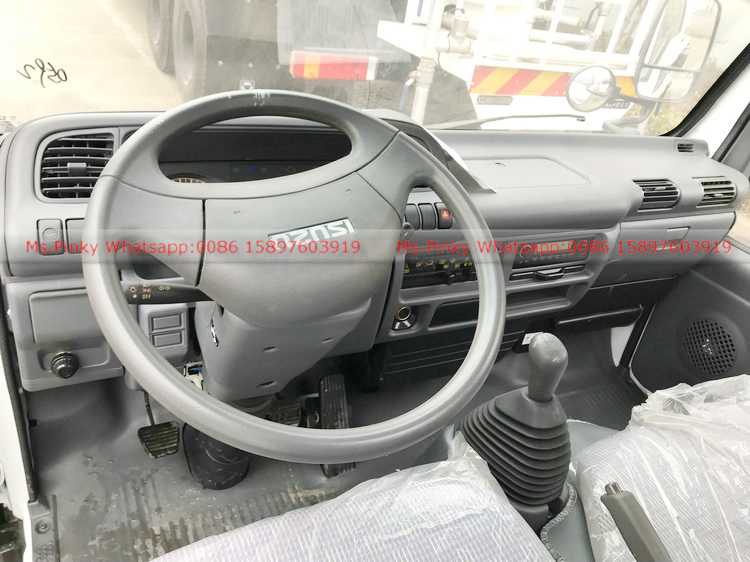

Cabin Inside:
More Information, please contact with Ms Pinky, Whastapp: 0086 1589763919
