General parameter

Vehcile Brand

ISUZU

Overall Dimension

6260×1980×2780mm

Rated Payload

3000kgs

Kerb Weight

4350kgs

Cab

Cabin

Four doors , power steering

Air Condition

With

Engine

Model/Rated Power

4JB1CN

Displacement/ power

2771ML / 72KW/98HP

Emission Standard

Euro 4

manufacturer

ISUZU motor Co., Ltd.

Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging

Chassis

driving type

4*2

Wheel base

3360mm

Front/rear tread

1504/1425

Front axle

 2.0T front axle

Rear axle

 3.2T rear axle

Brake system

 Oil brake with Vacuum booster pump

Gear box

ISUZU MSB five forwards

Number of leaf spring of suspension

8/6+5

Type & Size of Tyre

7.00R16

Max Speed

90-120Km/h

Liquid tanker

Water tank Volume: 2000L; Foam tank volume: 500L

Material: high quality carbon steel plat

Foam tank: stainless steel.

Structure: welding, there is clapboard inner.

Equipment: 2 manholes, with speediness lock and turn on equipment.

           2 overflow mechanisms

           2 drainage exits

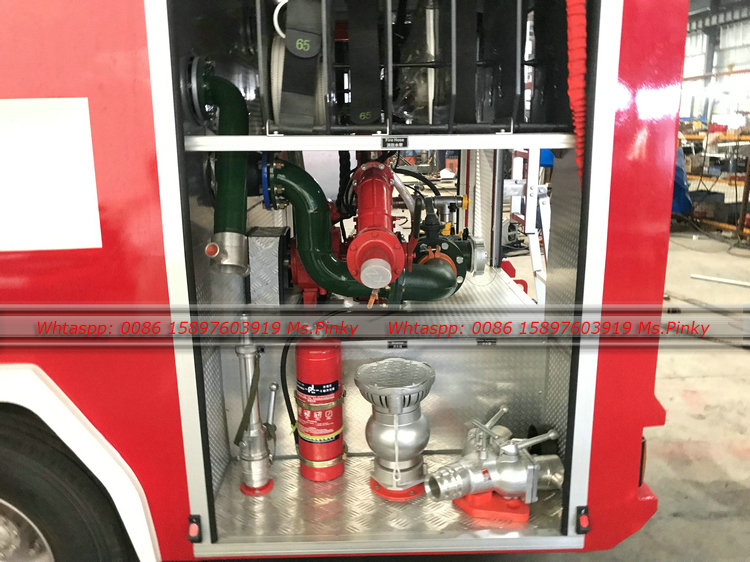

Fire fighting pump and pipeline system

Model of Fire fighting pump: PL8/42 Centrifugal gal pump

      Pressure: 1.0Mpa

Flux: 24L/s

Suction depth: ≥7m

Suction time: ≤35s

Installing type: central or rear

Delivery outlet (B/S type) : Ø65mm(2 1/2 inch)

Suction inlet :100mm (4inch) both side

Water tank inlet: Ø65mm(2 1/2 inch)

Fire fighting nozzle

Model: PS30

Range: water≥55m

        Foam≥40m

Pressure: 1.0Mpa.

Rotation angle of fire fighting ;360

PTO

Sandwich PTO, splashing-type lubricate, can put out fire when driving.

Material of

 carriage

Carriage is made of high quality steel and Aluminum embossed sheet

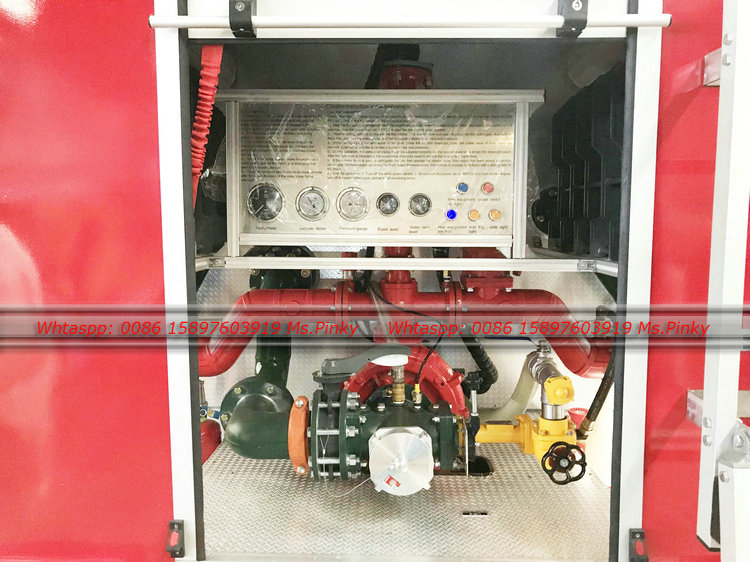

Pump room

Central or rear type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.

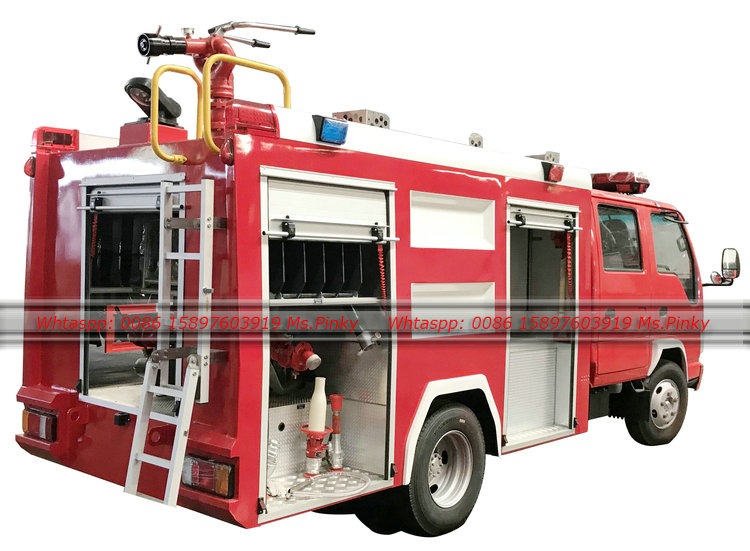

Equipment box

Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.

Structure: whole frame is welded to ensure intension and rigidity.

Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.

Rolling shutter

 door

Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.

pedal

  Adopt air-supporting structure to overturn, easily and safely lock.

Material is high quality Q235A, pedal is non-skid aluminum embossed sheet

Electric control

 system

1. Alarm

  Warning light: Lightweight Rectangular, installed on the top of cab, in accordance with outside of whole truck.

  Siren: 80W. with FM / Public Address System and megaphone

2. Light in equipment and pump room can be controlled in carriage.

3. Other light: one light on the top of vehicle, the switch in the cab.

color

The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.
