1. FVZ ISUZU Lorry Crane Truck
2. ISUZU 6HK1-TCH 300HP Euro 5 Engine
3. Fast 9 Forwards transmission box.
4. Original ISUZU Air COndition
5. ISUZU Lorry Truck With Power Steering, Remote Control Locker
6. 11.00R20 OR 11.00R22.5 tire
7. ISUZU Truck : XCMG 10Tons Crane
8. Cargo size: 7000×2330×550mm
9. Mini Order: 1 unit
10.ISUZU Lorry Crane Truck manufactuer by Hubei Runli Company
11. Payment Term: TT OR LC
12. Delivery time: 15-45days
13. ISUZU Lorry Crane Truck sales Manager: Ms.Pinky
14. Whatsapp/wechat: 0086 15897603919
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
FVZ ISUZU Lorry Crane Truck 10Tons XCMG Crane ISUZU Truck Mounted Crane Knuckled Boom
1. FVZ ISUZU Lorry Crane Truck
2. ISUZU 6HK1-TCH 300HP Euro 5 Engine
3. Fast 9 Forwards transmission box.
4. Original ISUZU Air COndition
5. ISUZU Lorry Truck With Power Steering, Remote Control Locker
6. 11.00R20 OR 11.00R22.5 tire
7. ISUZU Truck : XCMG 10Tons Crane
8. Cargo size: 7000×2330×550mm
9. Mini Order: 1 unit
10.ISUZU Lorry Crane Truck manufactuer by Hubei Runli Company
11. Payment Term: TT OR LC
12. Delivery time: 15-45days
13. ISUZU Lorry Crane Truck sales Manager: Ms.Pinky
14. Whatsapp/wechat: 0086 15897603919
the specification of FVR ISUZU Lorry Crane Truck:
General parameter | Vehcile Brand | ISUZU | |
Overall Dimension | 10300×2465×2860mm | ||
Cargo size | 7000×2330×550mm | ||
Kerb Weight | 19500kgs | ||
Cab | Cabin | Two doors ,one bed, power steering | |
Air Condition | With | ||
Engine | Model/Rated Power | 6HK1-TCH | |
Displacement/ power | 7790L /206kw , 300Hp | ||
Emission Standard | Euro 5 | ||
manufacturer | ISUZU motor Co., Ltd. | ||
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging | |||
Chassis | driving type | 6*4 | |
Wheel base | 5700+1300mm | ||
Front/rear tread | 1960 /1855/1855 | ||
Front axle | 7T front axle | ||
Rear axle | 18T rear axle | ||
Brake system | Air brake | ||
Gear box | FAST 9 Forwards | ||
Number of leaf spring of suspension | 9/10 | ||
Type & Size of Tyre | 11.00R20 | ||
Max Speed | 90-120Km/h | ||
Other attached components: | Max. Lifting capacity | 10000 Kg | |
Max. Lifting height | 13 m | ||
Max.Lifting Moment | 20 K.m | ||
working radius | 9.75 m/kg | ||

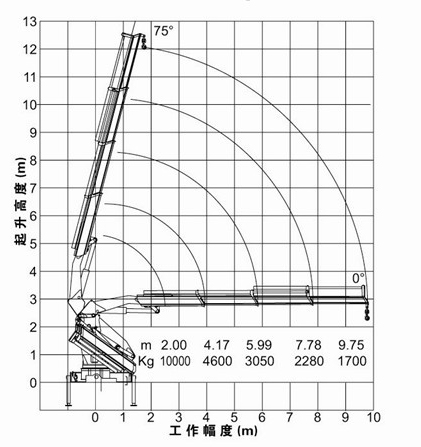

Working Radious of 10Tons XCMG Crane:

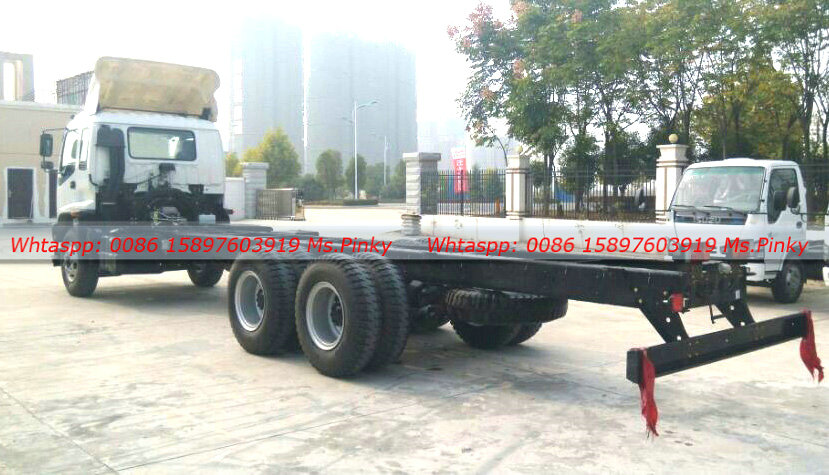

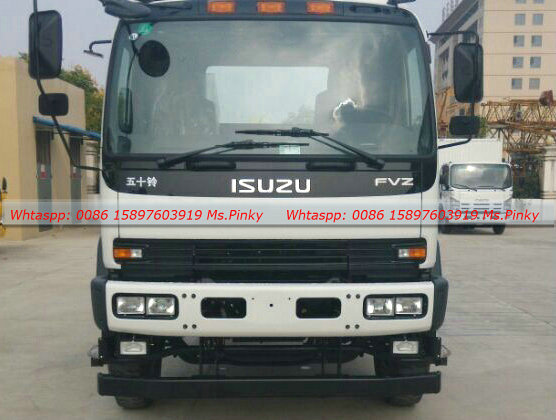

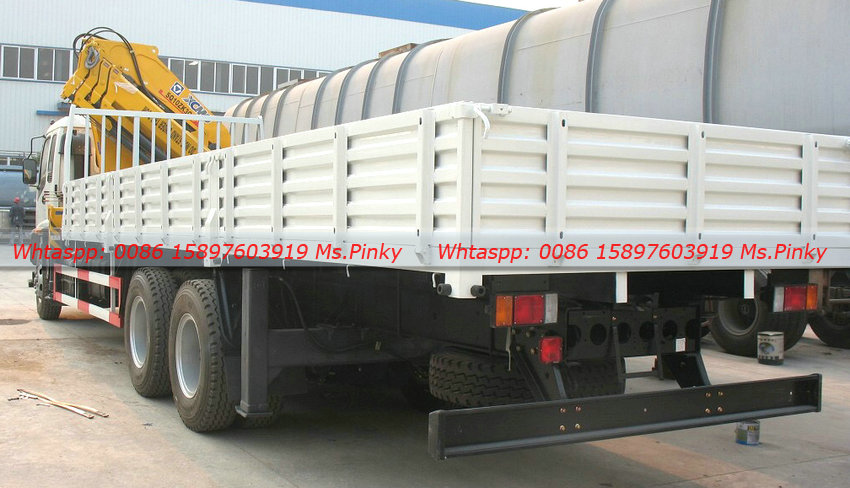

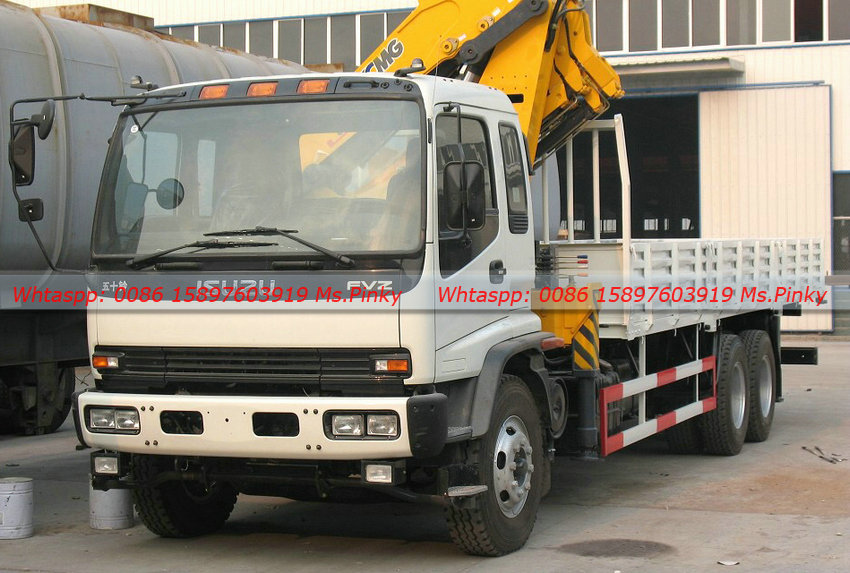

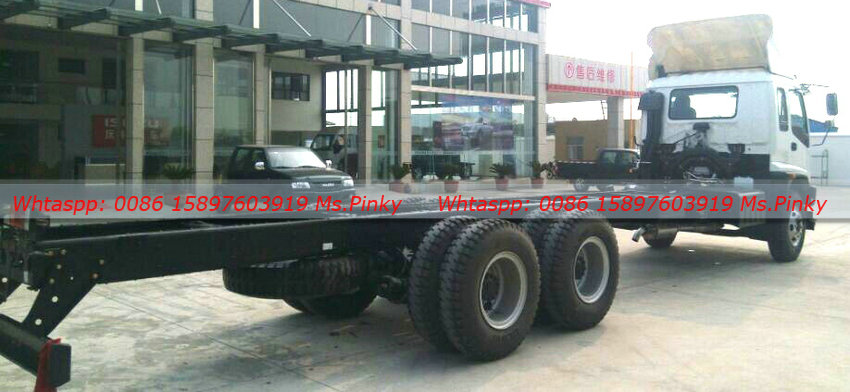

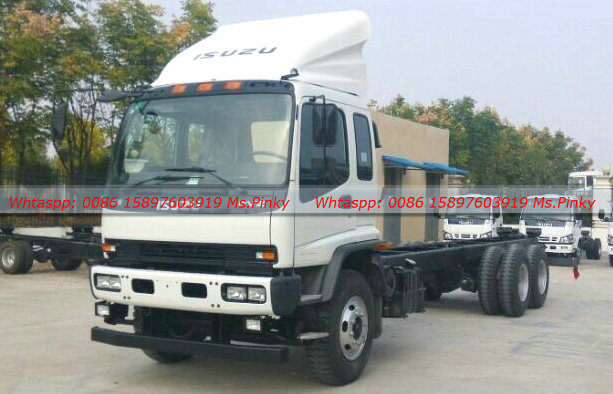

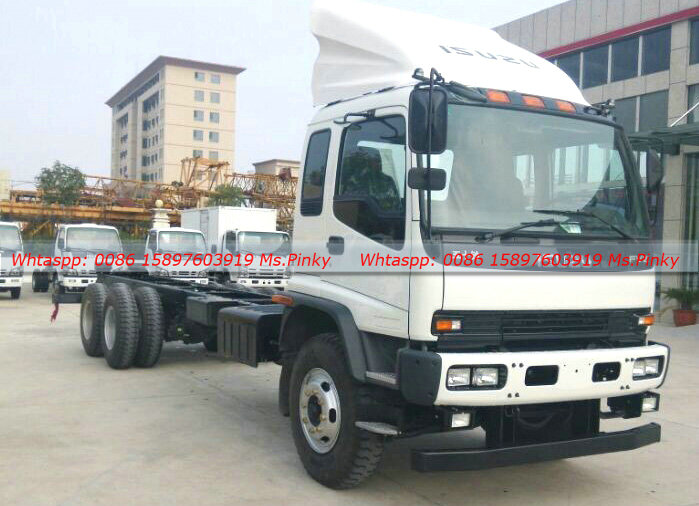

The Picture of FVZ ISUZU Lorry Crane Truck:

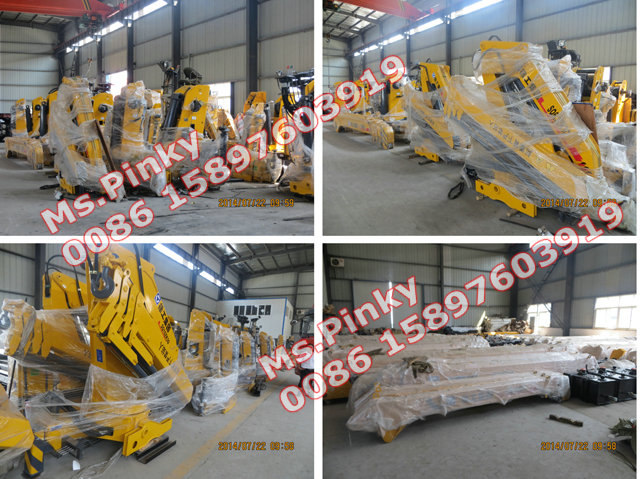

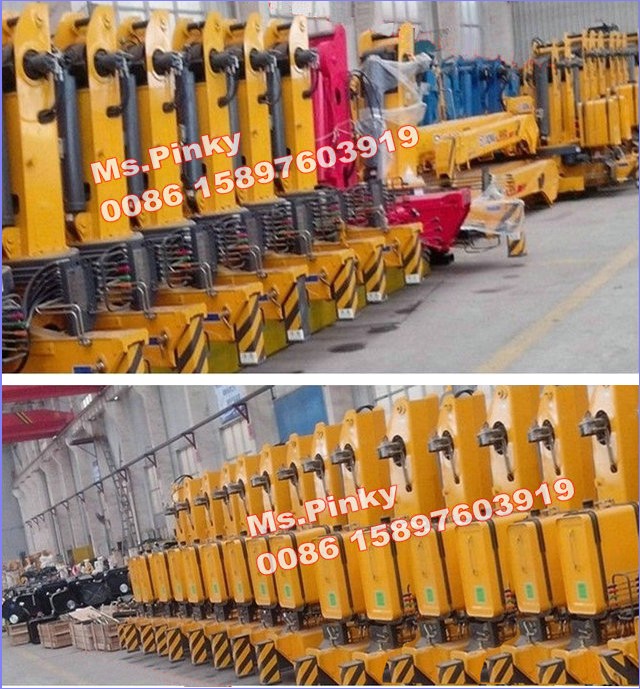

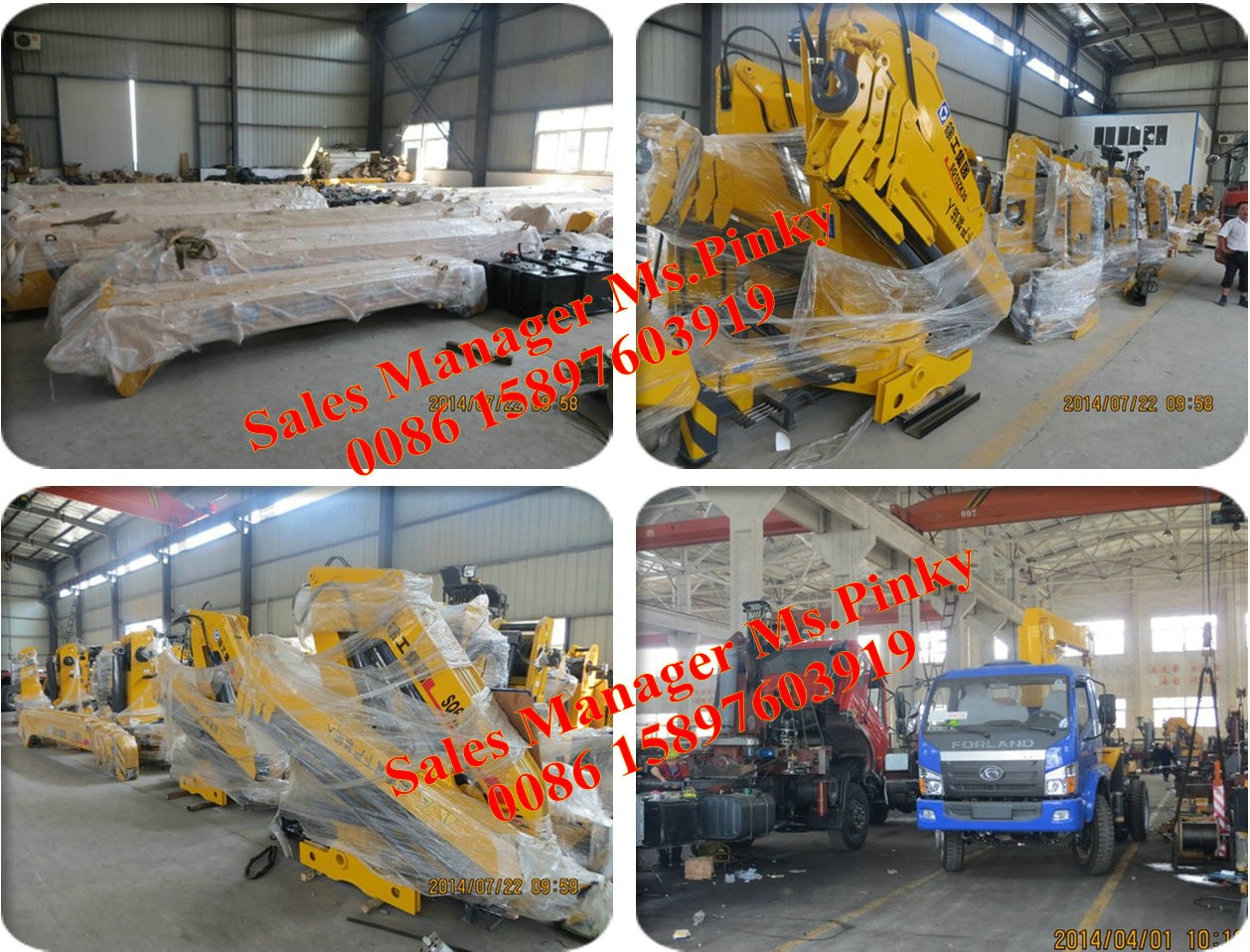

We take good quality steel plate to ISUZU Lorry Crane, Many of XCMG Crane at stock for you Choice:
differe brand Dongfeng Lorry Crane, Howo Lorry Crane Truck, Beiben Lorry Crane Truck for you choice:
More ISUZU Truck Mounted Crane ISUZU Lorry Crane Truck, Please contact With Ms.Pinky
