1. Mini ISUZU FRT Fuel Tank Truck
2. ISUZU 6WG1-TCG51 460HP
3. 6-Cylinder In Line
5. 5300Gallon / 20000Liters Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
460HP ISUZU GIGA 10Wheel Fuel Tank Truck Heavy Duty ISUZU Truck for Gasoline diesel Oil Delivery
ISUZU GIGA 460HP Diesel Oil Fuel Crude Gasoline Transport Carrier
1. ISUZU Fuel Truck
2. ISUZU 6WG1-TCG51 338kw/ 460HP
3. 6-Cylinder In Line
5. 20000Liters / 5300Gallon Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Hubei Runli Company specially Produces Different model ISUZU Fuel truck, the capacity of tank body from 3000L to 60000L.
| Specification |
the specification of 460HP ISUZU GIGA 10Wheel Fuel Tank Truck Heavy Duty ISUZU Truck for Gasoline diesel Oil Delivery:
Products Technical Specification | ||
Type | ISUZU 20m Fuel Tank Truck | |
Brand | ISUZU 6*4 | |
Cab | With A/C, on bed | |
Vehicle Description | ||
Overall dimensions（mm） | 9800*2500*3500 | |
Curb weight(vehicle) (kg) | 9800 | |
Max speed (Km/h) | 110 | |
Engine | ||
Mode | 6WG1-TCG51 | |
Type | Diesel, 6-cylinder in line with water cooling, turbo-charging | |
Max. power/rotated speed | 338(KW) / 460HP | |
Displacement(ML) | 16000 | |
Company of engine | ISUZU Motor | |
Emission level | Euro 5 | |
Chassis Description | ||
Wheel base | 4565+1370 | |
Front axle | Elliot I-beam type 8T | |
Rear axle | Driving axle, 26T*2 | |
Gear box | Fast 12 forwards | |
Brake system | Air braking | |
Operation control system | Power Steering | |
Electric system | 24V | |
Tyres | 315/80R22.5 | |
Dumper | ||
Capacity of tank body | 20,000Litres | |
Material of tank body | Carbon steel 5mm thickness | |
Compartments | One compartment | |
Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. | |
Manhole | Two manhole on the top of tank body | |
ladder | Steel mounted at front, bolted top and bottom | |
walkway | Along the top of the tank, sand paint | |
Cabinet | One at the side the tank covering the valve. | |
With pump: | Shangdong Boshan gear Pump, Model: 80YHCB/60, Flux: 60m3/h, Working pressure:0,6Mpa, efficiency:72%, Suction height:7m, Speed roration:960R/min | |
FAST 12 forwards + 1 reverse, with air condition, power steering, Electrical glass, ABS Battery: 12V*2 115Ah*2 | ||
| Pictures |

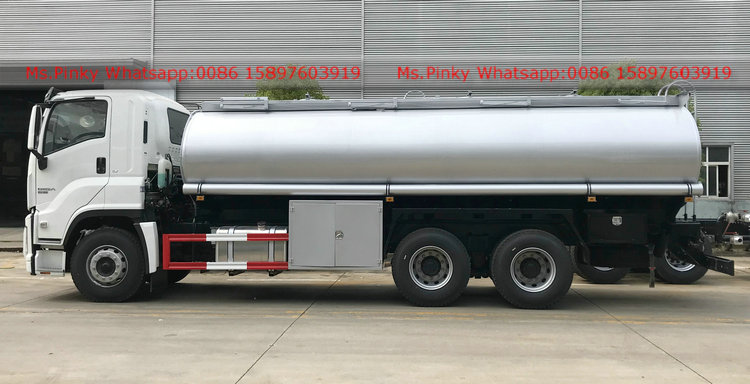

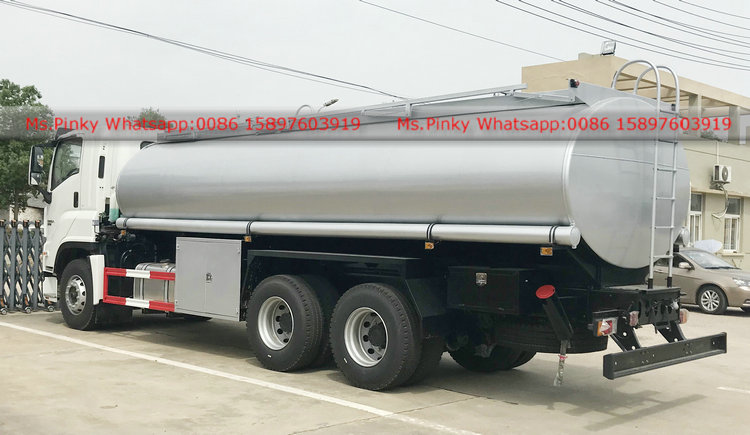

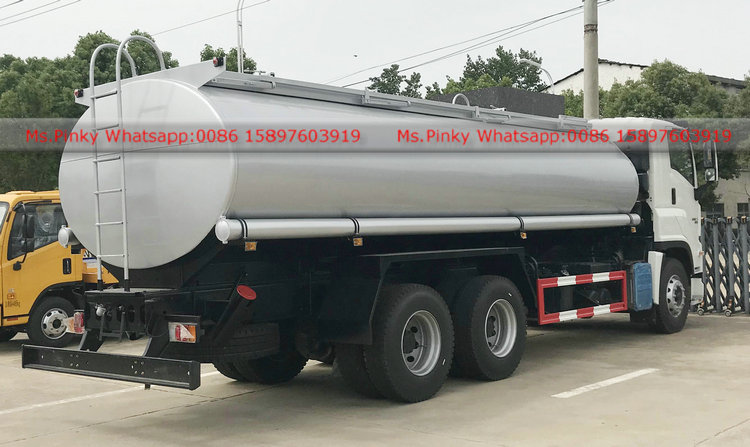

the picture of 460HP ISUZU GIGA 10Wheel Fuel Tank Truck Heavy Duty ISUZU Truck for Gasoline diesel Oil Delivery:
ISUZU Fuel Tank Truck, hydraulic pressure head.

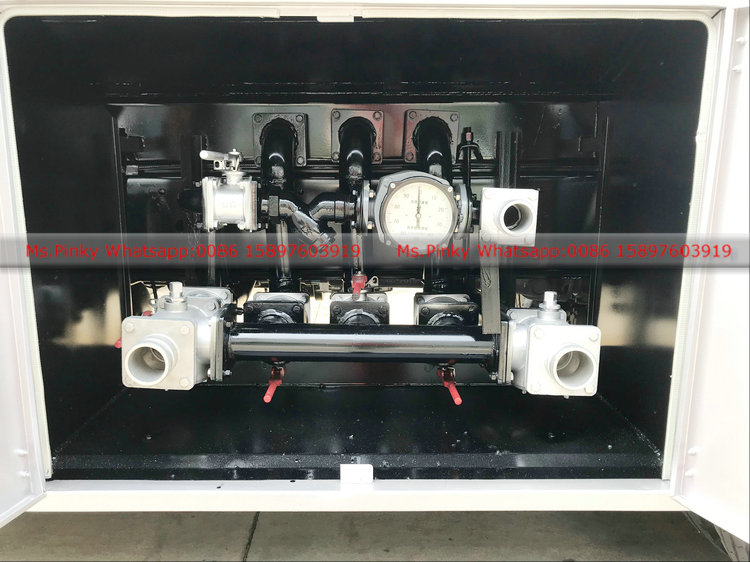

other optional equipment for ISUZU Fuel Truck:
More Information, please contact with Ms Pinky, Whastapp: 0086 1589763919
