240HP ISUZU FVR Sweeper Road Car-ISUZU SPECIAL TRUCKS MANUFACTUER

120HP ISUZU Street Sweeper Truck adopts a high-tech cleaning system, with a dirt absorption width of 1.1 meters; Built in electronic spray to reduce dust, the sweeping width shall not be less than 2.8m when the left and right sweeps are swung out.

ISUZU Street Sweeper Truck is also equipped with an electric diaphragm pump, which provides low-pressure water to the left and right scanning discs for dust suppression during scanning operations. The electric pump is automatically controlled by an electronic control system, without manual operation. The cab operating platform is ergonomically designed, and all operation knobs are assembled on the operation box located on the right side of the driver, making it simple, intuitive, and easy to operate

Products Technical Specification
Type	ISUZU Street sweeper Truck with USB, MP3
Brand	ISUZU 4*2
Cab	Power steering
Vehicle Description
Overall dimensions（mm）	5995×1960×2650
Curb weight(vehicle) (kg)	3931
Loading capacity (kg)	4000
Max speed (Km/h)	95-120
Engine
Mode	4KH1-TCG40
Type	Diesel, 4-cylinder in line with water cooling, turbo-charging
Max. power/rotated speed	88kw 120HP
Displacement(ML)	2999ML
Emission level	Euro 4
Chassis Description
Wheel base	3360
Front axle	2.5T
Rear axle	4.8T
Front tread / rear tread	1504/1425
Gear box	ISUZU MSB 5-speed
Brake system	Air braking
Operation control system	Power Steering
Electric system	24V
Tyres	7.00-16

Suction width	1.1meter, Built in electronic spray dust suppression
Cleaning width	2.8m When swinging out during left and right pan sweeping
Water tank capacity（m³）	1500Liters
Garbage tank capacity（m³）	4000Liters

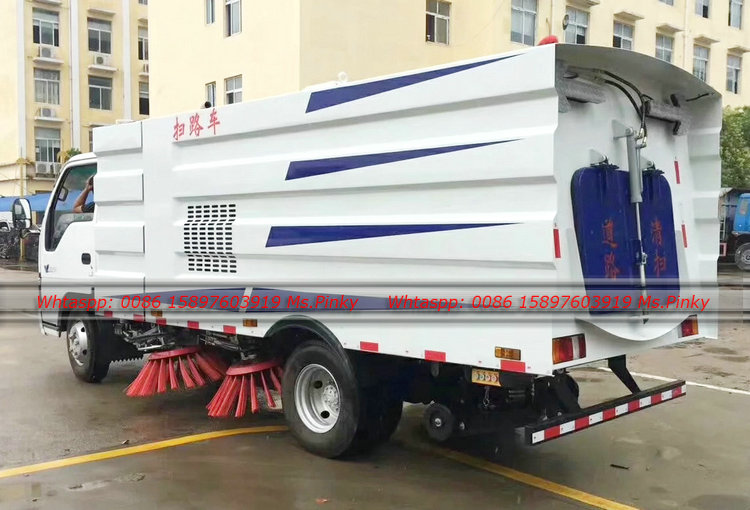

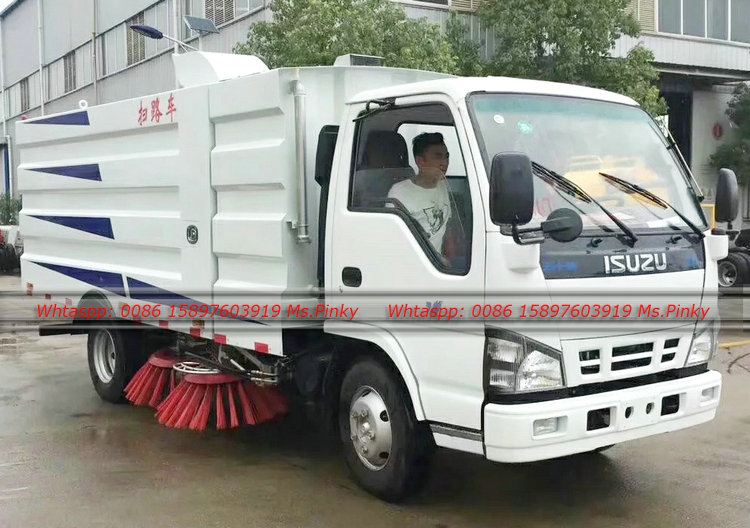

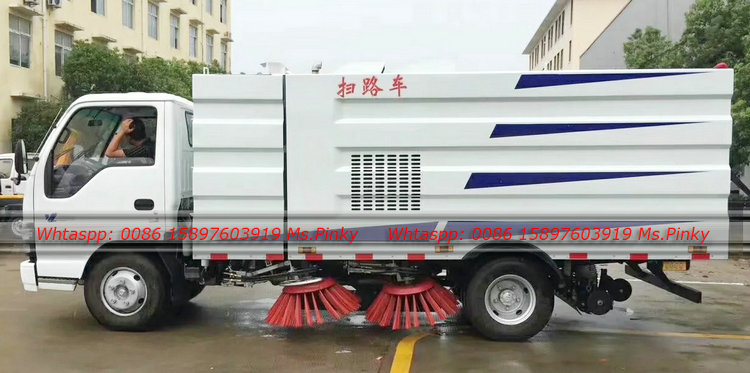

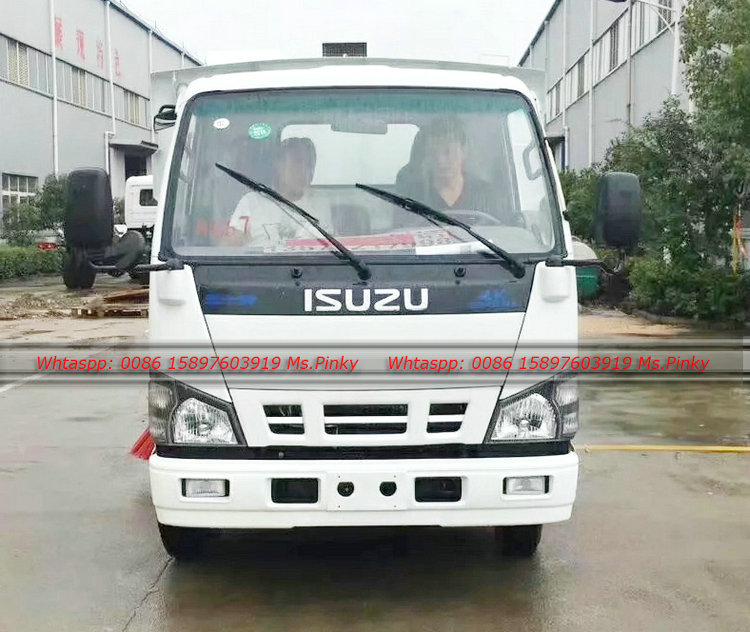

Pictures

Characteristics of the ISUZU road sweeper Truck:

● Cleaning device type: middle four sweep + rear suction nozzle; road cleaning and cleaning.

● Suction nozzle: rolling rubber wheel three-point floating support, can meet the cleaning requirements of different road surfaces, is the first in China.

● All fasteners are galvanized treatment, sweep plate, suction nozzle and other structural parts are anti-corrosion and rust prevention treatment, strong adhesion, coating corrosion resistance, strong weather resistance;

● The dustbin adopts a double-layer structure, strong and durable. The inner liner is made of stainless steel material, with high structural strength and no corrosion;

● In emergency state, can be the manual pump to operate the dustbin lifting and other actions, in special circumstances can directly enter the auxiliary engine working compartment for detection and maintenance;

● The appearance of the dustbin adopts the side square shape, circular arc transition, the whole car proportion coordination, beautiful and generous.

The process is simple, the surface of the box is smooth, garbage dumping is convenient without residue, and the outer surface of the box is no welding deformation, no need to fill atomic ash, the vehicle shape is beautiful.

● The secondary engine and the fan use centrifugal clutch connection device, which can ensure that the secondary engine starts without load and the secondary engine stops automatically separated from the fan.

● The use of intelligent control system, electrical and liquid centralized control, simple operation, the driver can complete the operation of various actions in the cab.

The Hyperion solenoid valve set is the core component of the vehicle hydraulic system, which controls the whole vehicle hydraulic drive and the two-way operation button, it includes a series of mechanical operation, such as sweeper lifting, suction cup lifting, garbage bin lifting, back door opening and closing, etc. . The car is equipped with solenoid valve control box cover to effectively prevent dust and garbage from entering the box.	Maintenance-free centrifugal fan sub-engine and fan are the two core parts of the sweeper. The sub-engine provides the power for the fan to run and makes the road surface and garbage be sucked into the box body for storage, thus realizing the road surface cleaning, homework. The fan adopts high-power abrasion-resistant centrifugal maintenance-free fan, no noise, high efficiency, large air volume, long service life.

The light engine 65KW auxiliary engine and the fan are the two core parts of the sweeper. The auxiliary engine provides the power for the fan and makes the road surface and garbage be sucked into the inner of the box body for storage, so as to realize the road surface cleaning function.	Rear suction cup The suction cup has a built-in spray dust reduction bracket

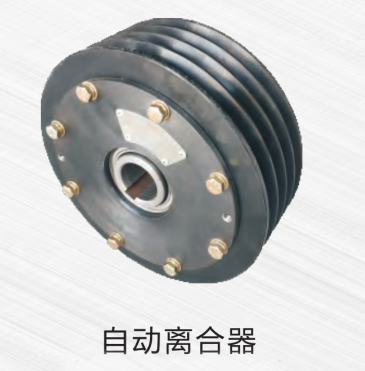

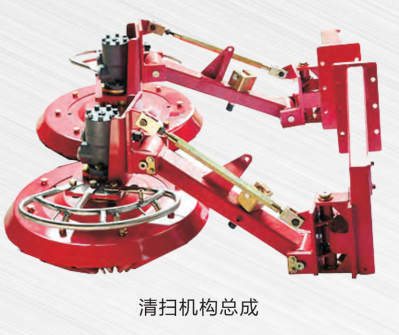

Stepless variable speed automatic clutch automatic clutch to reduce the fan start and stop when the impact on the engine. The clutch has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost saving.	The sweeping tray is placed in the middle of the four sweeping trays, and the garbage is gathered up in front of the suction cup.

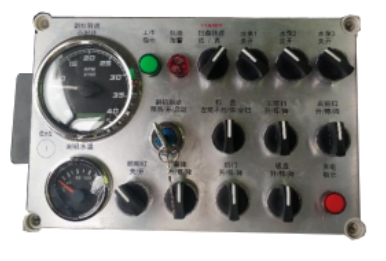

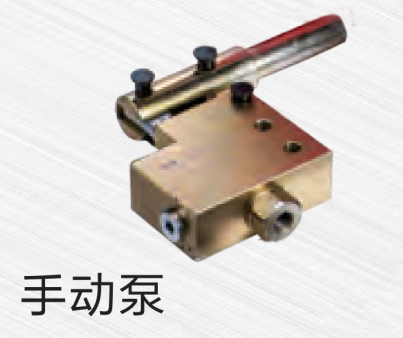

The manual pump emergency system can control the whole vehicle hydraulic system through the manual emergency hydraulic pump	Control switch cab knob-type centralized control, easy to operate

ISUZU Road Sweeper Car (also called as Isuzu Street Sweeper Truck, Isuzu Road Sweeping Vehicle,

Isuzu Broom Sweeper Truck, Isuzu Vacuum Sweeper with Brush),

This type ISUZU Street Sweeper Truck is is a high efficiency vehicle can be widely used in sweeping city roads,

highways, construction sites, bridges, squares, and cement concrete road surface.
