ISUZU FTR Fire Trucks
1. 190HP 4HK1-TCG40 Euro 4 Engine
2. with ISUZU MLD 6 forwards.
3. tire: 10.00R20
4. with A/C, power steering. four doors.
5. water and foam 6-8Tons capacity.
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
190HP FTR ISUZU FIRE TRUCKS 6-8TONS Water tank Fire Vehicles
FTR ISUZU Fire Trucks, middle duty fire Vehicle with water and foam sparying fire. equipment middle and low pressure fire pump and fire monitor. sandwich PTO, splashing-type lubricate, can put out fire when driving. ISUZU FTR Fire Truck good performance and best price.
FTR ISUZU Fire Truck name Water Fire trucks, ISUZU Water Tank fire Fighting truck and Water Pumper Trucks
ISUZU FTR Fire Trucks
1. 190HP 4HK1-TCG40 Euro 4 Engine
2. with ISUZU MLD 6 forwards.
3. tire: 10.00R20
4. with A/C, power steering. four doors.
5. water and foam 6-8Tons capacity.
| Specification |
Specification of FTR ISUZU Fire Trucks:
6000Liters to 8000Liters Fire Fighting Trucks | ||
Chassis Model /Manufacturer | ISUZU | |
cab | With sleeper | |
Overall Dimension（ L×W×H） | 8600*2500*3000mm | |
Kerb Weight | 9420Kgs | |
front overhang/rear overhang | 1335/2665 | |
Engine | Model/Rated Power | 4HK1-TCG40 140KW/190HP 4 cylinder |
Displacement | 5193CC | |
Emission Standard | Euro 4 | |
manufacturer | ISUZU engine | |
Type & Size of Tyre | 10.00R20 | |
driving type | 4×2 | |
Wheel Base | 4500 mm | |
Max Speed | 90 Km/h | |
Capacity of tank body | 6000Liters to 8000Liters | |
Liquid tanker | Volume: total 6000L, (among, water: 5000L; FOAM:1000 L) Material: high quality carbon steel plate, anti-rust treatment inside. Structure: welding, there is baffle plate inner. Equipment: 1 manholes, with speediness lock and turn on equipment. 1 overflow mechanisms 1 drainage exits | |
Fire fighting pump and pipeline system | Model of Fire fighting pump: CB10/40 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s Installing type: central or rear | |
Fire fighting monitor | Model: PP32 Range: water≥50m foam≥45m Pressure: 1.0Mpa. | |
PTO | sandwich PTO, splashing-type lubricate, can put out fire when driving. | |
ISUZU MLD 6 forwards + 1 reverse, with air condition, power steering, Electrical glass, USB System Brake: air Brake Front Axle( Loading capacity): 6.3T Rear Axle( Loading Capacity): 13T Battery: 12V*2 115Ah*2 | ||
| Photos |

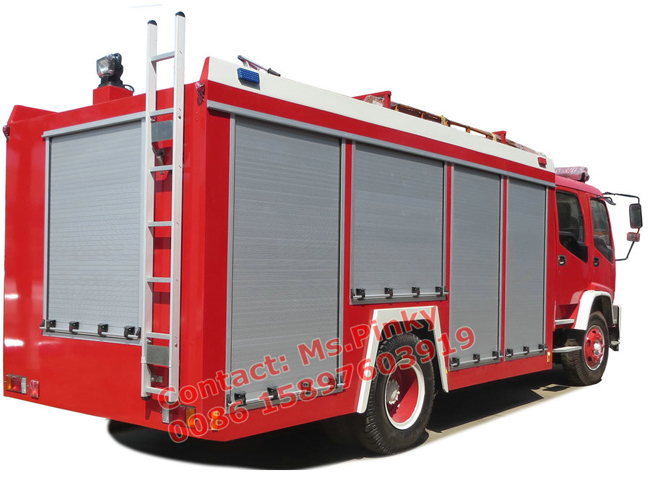

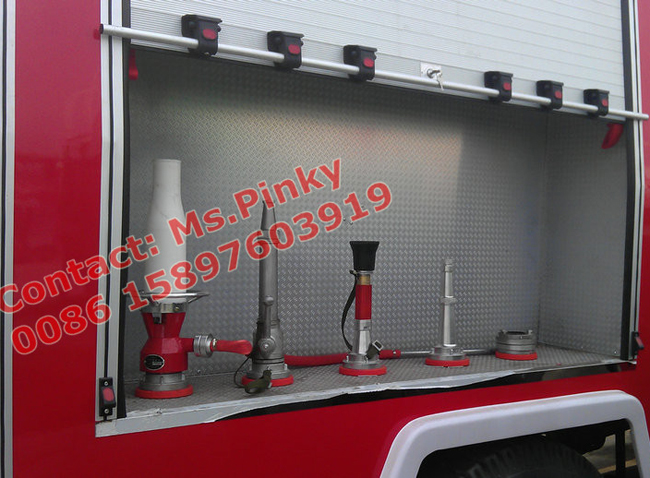

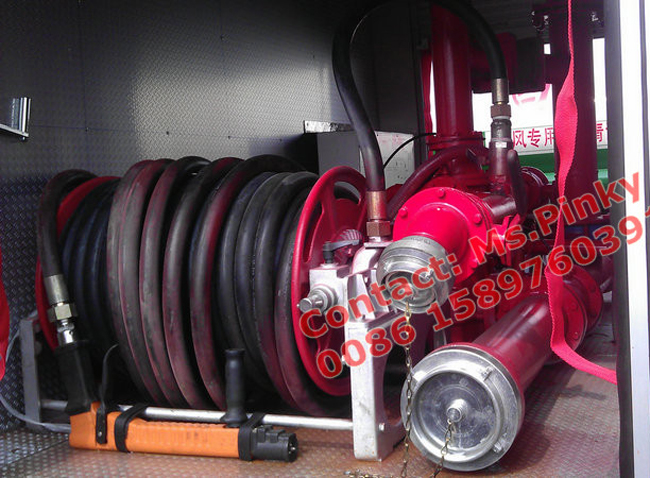

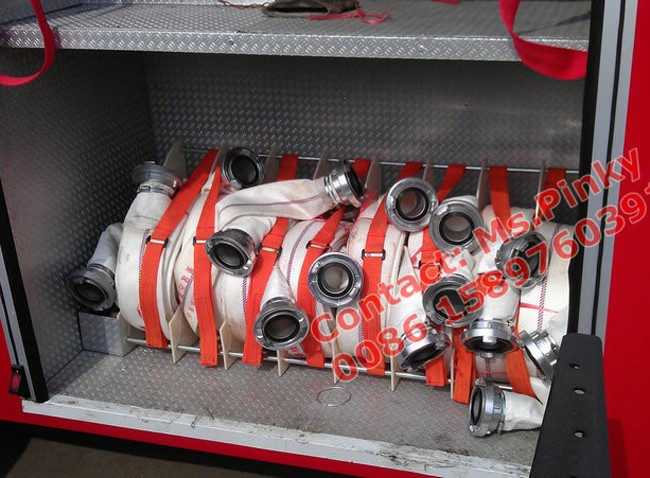

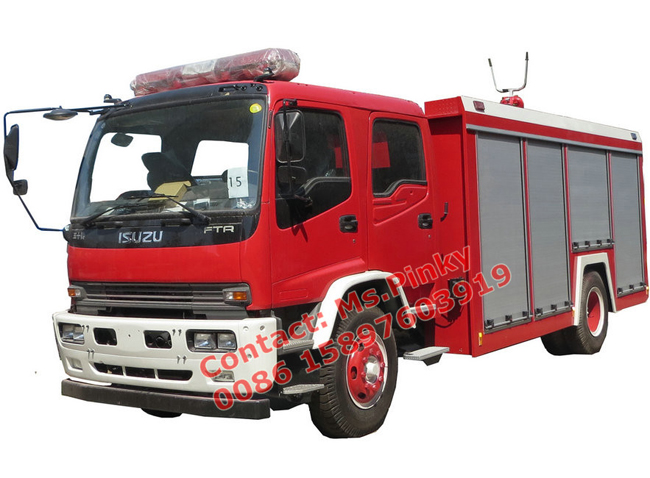

The pictures of FTR ISUZU Fire Trucks:
ISUZU fire tretail, pleaseuck, more d contact with Mrs Pinky, Whatsapp: 0086 15897603919
