1. ISUZU ELF Diesel Transpot Truck
2. ISUZU 4HK1-TC51 190HP
3. 4-Cylinder In Line
5. 6000L Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
ISUZU ELF 190HP Petrol Diesel Transport Truck Fuel Oil Delivery Trucks with Mobile Dispenser
6000Liter ISUZU Fuel Truck with Mobile Refilling Machine
1. ISUZU ELF Fuel Truck, 700P ISUZU Truck
2. ISUZU 4HK1-TC51 190HP
3. 4-Cylinder In Line
5. 6000L Tank Capacity
6.Materail: Carbon Steel or Stainless Steel
7. ISUZU Fuel Truck Loading: Diesel, Oil, Gasoline, Water...
8. Optional: Mobile Refilling Machine, Filling Monitor, Hose Reel.
reading meter, level gauge, special manhole
9. ISUZU Fuel truck manufacuter by Hubei Runli Company
10.Mini Order: 1unit
11.delivery time: 10-15days
12.Paymenter terms: TT OR LC
13.oversea market manager: Ms.Pinky
14. Whetsapp/wechat: 0086 15897603919
Hubei Runli Company specially Produces Different model ISUZU Fuel truck, the capacity of tank body from 3000L to 60000L.
| Specification |
the specification of ISUZU ELF 190HP Petrol Diesel Transport Truck Fuel Oil Delivery Trucks with Mobile Dispenser:
Products Technical Specification | |
Type | 6000Liters ISUZU Fuel bowser Truck |
Brand | 4*2 |
Cab | Left hand drive, Power steering,with air condition. |
Vehicle Description | |
Overall dimensions（mm） | 7500*2300*2800 |
Curb weight(vehicle) (kg) | 6760 |
Loading capacity (kg) | 4950 |
Max speed (Km/h) | 95-120 |
Engine | |
Model/Rated Power | 4HK1-TC51 |
Displacement/ power | 5193L / 141KW,190HP |
Emission Standard | Euro 5 |
manufacturer | ISUZU motor Co., Ltd. |
Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging | |
Chassis Description | |
driving type | 4*2 |
Wheel base | 3815mm |
Front/rear tread | 1680/1650 |
Front axle | 4T front axle |
Rear axle | 7T rear axle |
Gear box | ISUZU MLD SIX Forwards |
leaf spring of suspension | 8/10+6 |
Type & Size of Tyre | 235/75R17.5(6+1spare tire) |
Fuel tanker | |
Capacity of tank body | 6,000Litres |
Material of tank body | Carbon steel Install diesel Fuel Pump |
Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. |

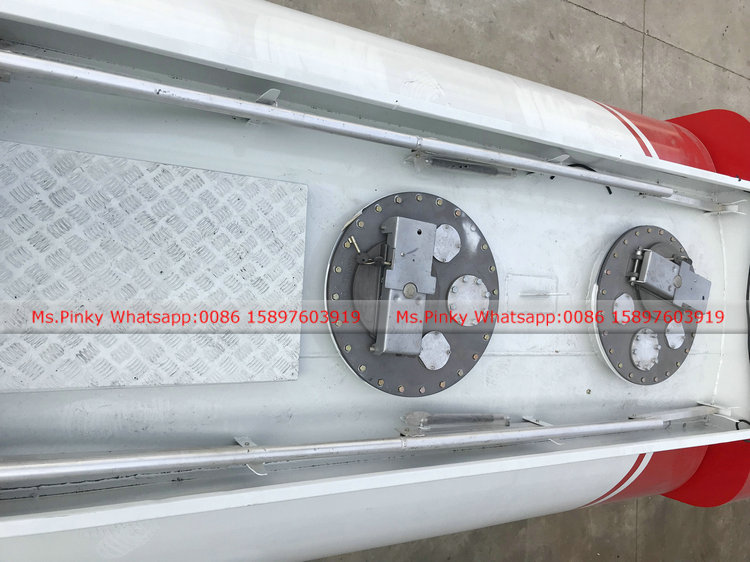

Manhole | On manhole on the top of tank body |
ladder | Steel mounted at front, bolted top and bottom |
walkway | Along the top of the tank, sand paint |
Cabinet | One at the side the tank covering the valve. |
Painting | One anti corrosion and zinc-rich primer and final painting will be accordance with customer need. |
| Pictures |

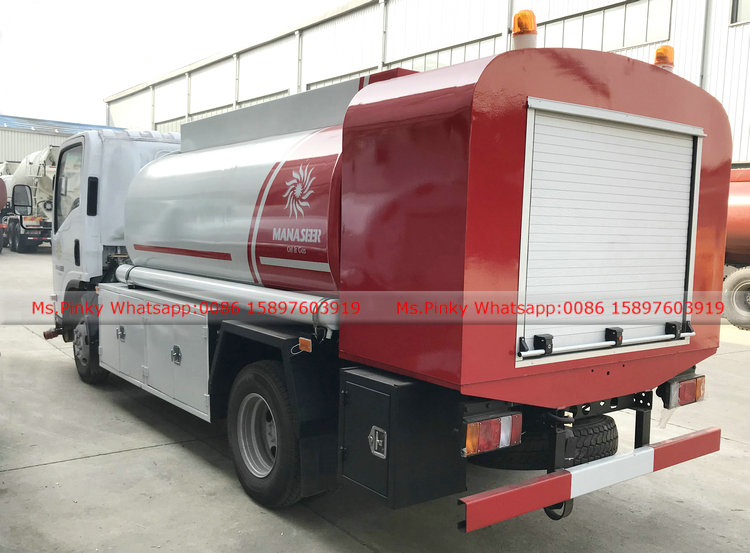

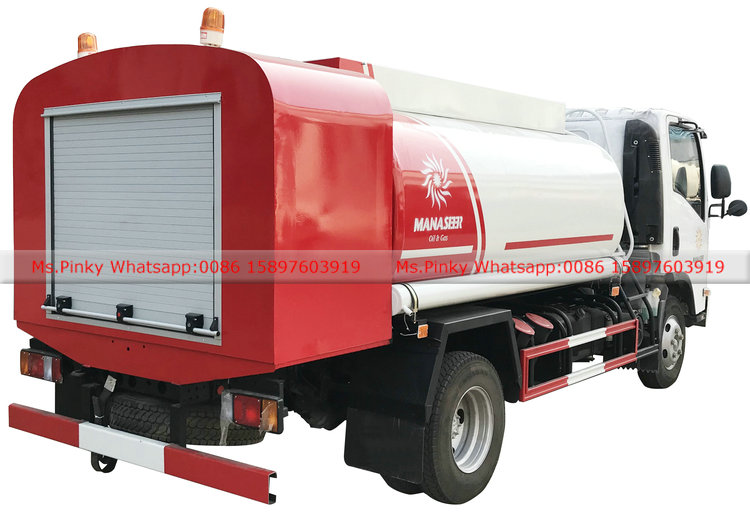

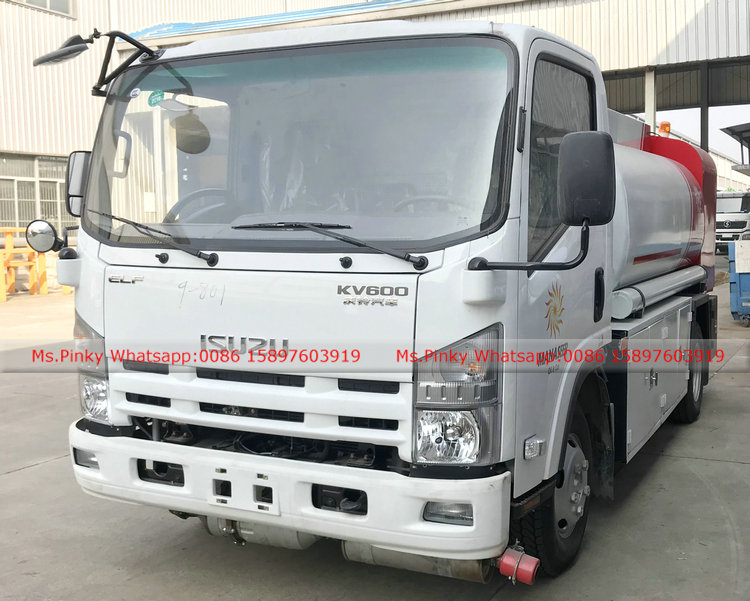

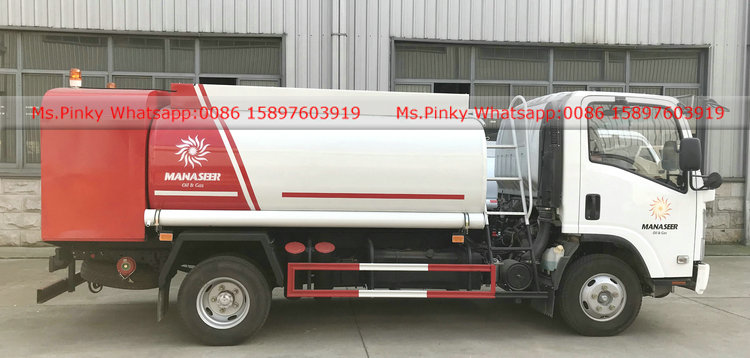

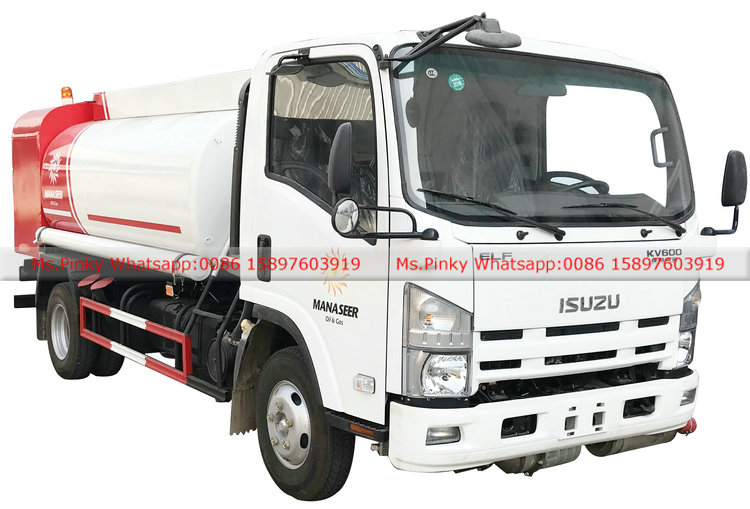

the picture of ISUZU ELF 190HP Petrol Diesel Transport Truck Fuel Oil Delivery Trucks with Mobile Dispenser:
ISUZU Fuel Tank Truck, hydraulic pressure head.

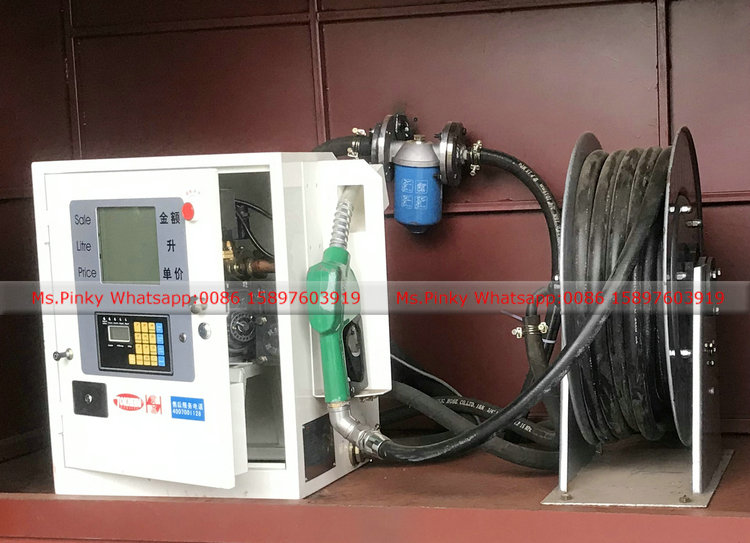

other optional equipment for ISUZU Fuel Truck:

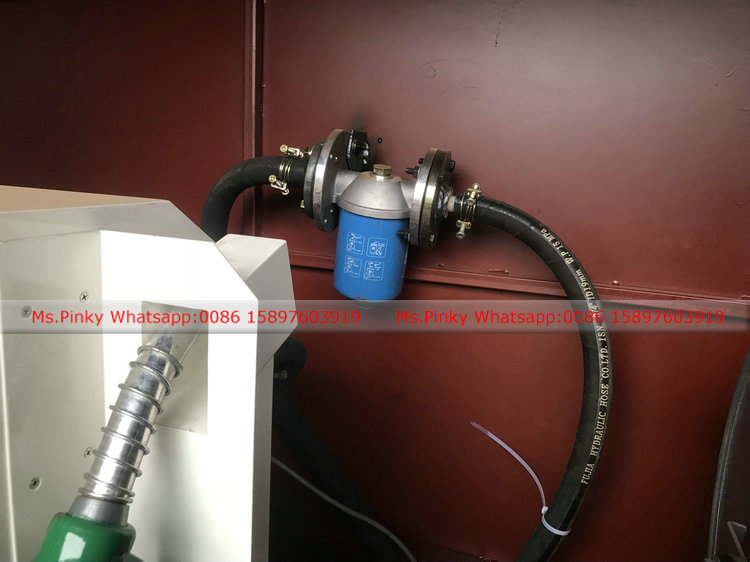

Reading meter before outlet:
More Information, please contact with Ms Pinky, Whastapp: 0086 1589763919
