ISUZU FTR Refrigerator Truck
-- Fresh or Freezer Goods Transportate for meat, medical ...
--ISUZU 190HP Engine
--wagon Size: 6415×2250×2370mm
--Good quality Temperature Controlled unit Carrier, Thermoking...
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
ISUZU Refreigerator Van Trucks 12Tons Refrigerator Wagon
| Function |
the Function of ISUZU FTR Refrigerator Wagon Trucks:
Refrigerator Trucks are kind of enclosed van truck that equipped with refrigerated units and polyurethane insulation compartments,
mainly used to transporting frozen foods, fresh fruit and vegetables, vaccine medicine, medical waste and so on,
it can install different equipment for different goods transportation.
the cooling refrigerator could be famous brand such as carrier, Thermking etc. good quality.
it will be Transport Fresh or Frozen goods, there are two main lowest temeprature -5 degree or -16 degree for your purpose choice.

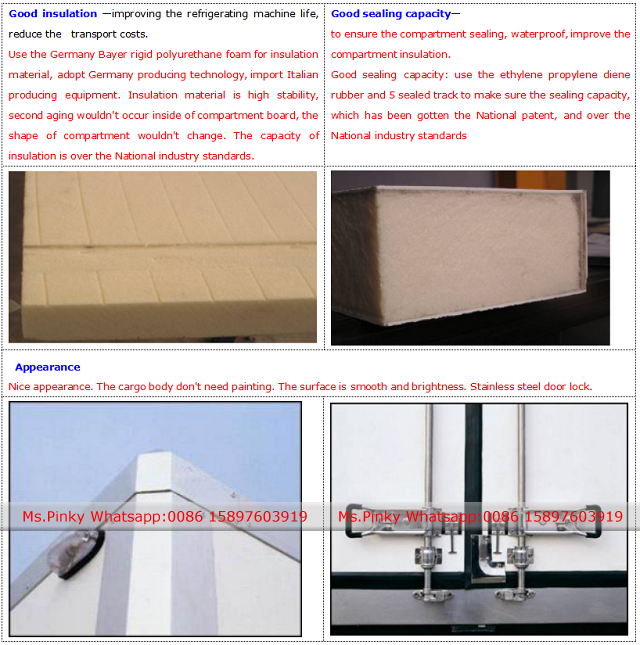

we use good qualit van body from temperature reservation. the box surface metailer could be fiberglass, aluminum or stainless steel.
the padding meterail is polyurethane foam that has super tempertaure preservation ability with different thickness for choice.
| Specification |
the specification of ISUZU FRT Refrigerator Wagon trucks :
ISUZU FTR Refrigerate Truck | ||
General parameter | Vehcile Brand | ISUZU QL1140TNFR |
Overall Dimension | 9000×2470×3935mm | |
Total Mass | 14000kgs | |
Rated Payload | 6750kgs | |
Kerb Weight | 7055kgs | |
Cab | Cabin | Two doors , turn over cabin, power steering |
Air Condition | With | |
Engine | Model/Rated Power | 4HK1-TC |
Displacement/ power | 5200L /129kw （175HP） | |
Emission Standard | Euro Ⅲ | |
manufacturer | ISUZU motor Co., Ltd. | |
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging | ||
Chassis | driving type | 4*2 |
Wheel base | 5000mm | |
Front/rear tread | 1960/1855 | |
Front axle | 6.3T front axle | |
Rear axle | 13T rear axle | |
Cultch | Single dry iaphragm spring cultch | |
Brake system | Air brake, exhaust brake、air cut brake | |
Gear box | ISUZUMLD six forwards | |
Number of leaf spring of suspension | 9/14 | |
Type & Size of Tyre | 9.00-20 | |
Max Speed | 90-120Km/h | |
SuperStructure | Refrigerated body size | 6415×2250×2370mm |
Box Metail | Fiberglass | |
Cooling system | King | |
Lowest temperature | -5 or -15degree | |
| Picture |

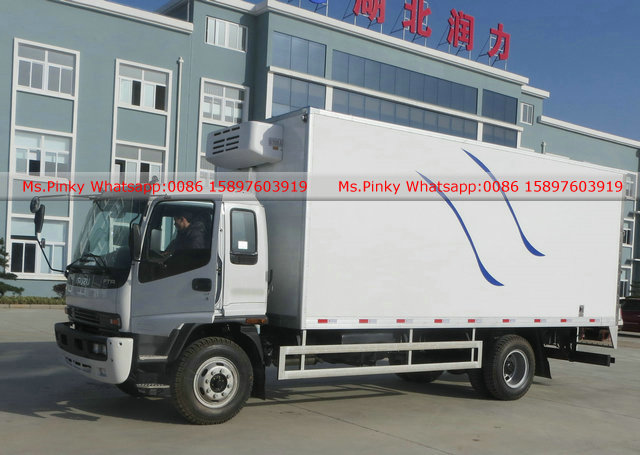

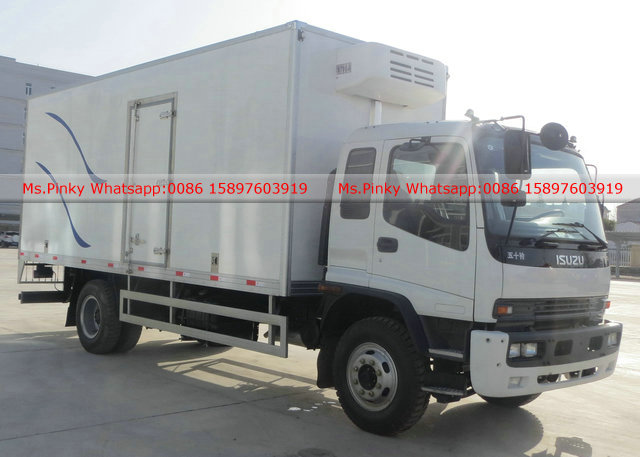

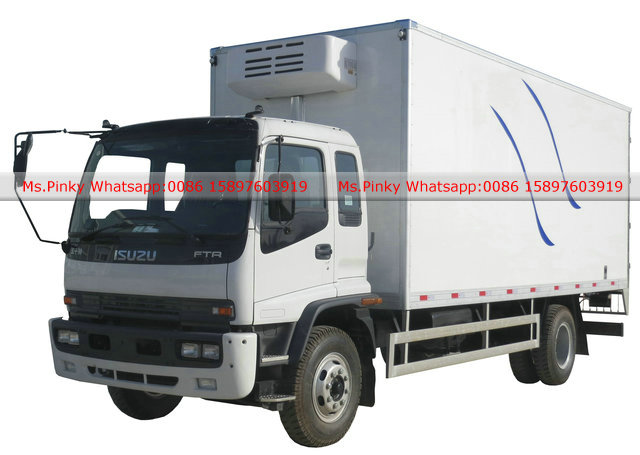

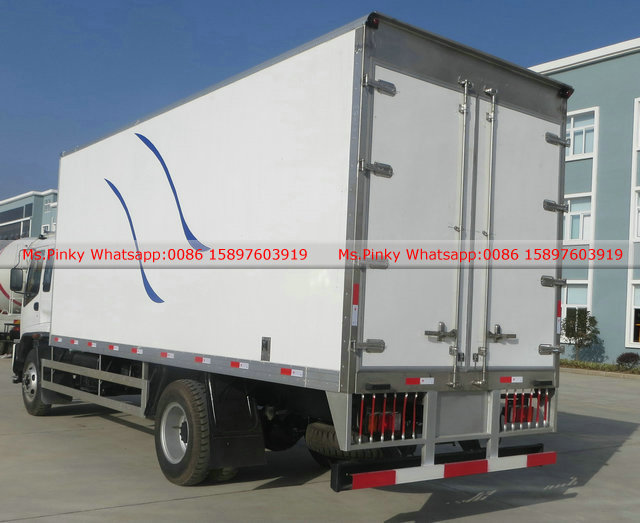

the Pictures of ISUZU FTR Refrigerator Trucks:
| Equipment |

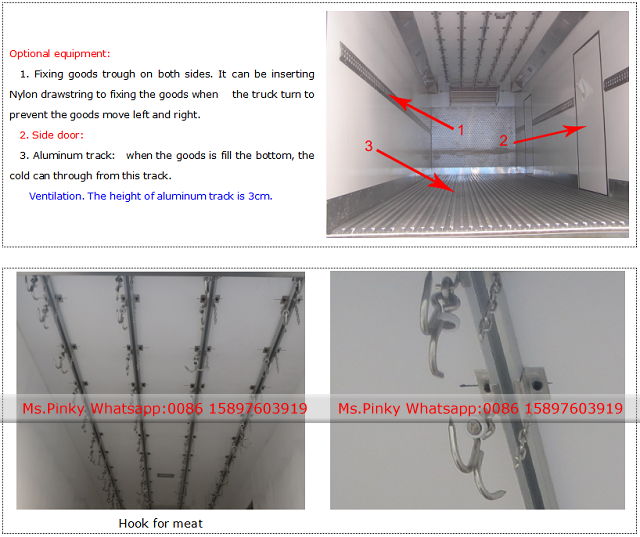

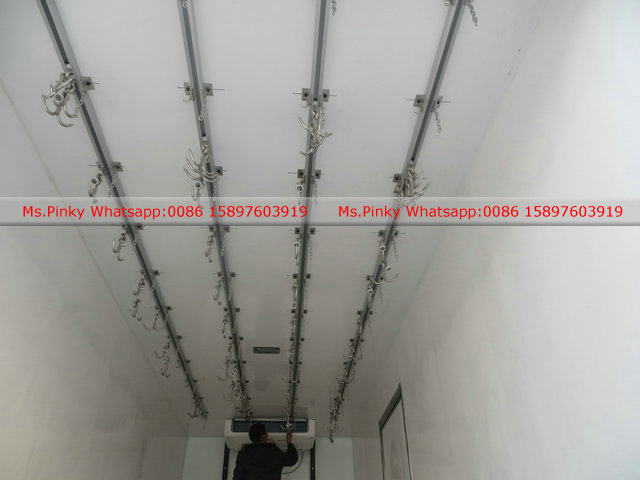

the Different Equipment for refrigerator Trucks:
Aluminum rail 4cm high on floor, each side 8pcs.
4 pcs 5cm high wind slot install inside of back door.
4pcs 10cm high wind slot installed inside of front plate.
Min.temperature up to -18 degrees. Automatically adjust the termperature 2-8degree
with a standard side door bar.
the glass fiber reinforced plastic outside of body.
intermediate polyurethane foam insulation,75mm thickness
refrigerating unit with evaporator guardrial.
Key Words: Refrigerator truck, refrigerated vehicle, ISUZU cooling truck, ISUZU refrigerator vehicle, vaccine delivery truck, food refrigerated truck, Medical waste refrigerated truck
