1. Engine: 4HK1-TCG40 88KW/120HP
2.With USB, Power steering, air condition.
3.With ISUZU MSB 5 forwards gear box.
4.2.5T front axle, 4.8T rear axle.
5.3000Liters to 4000Liters Vacuum Tank
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
ISUZU Vacuum Trucks 3000Liters to 4000Liters Sewage Suction Truck
| Features |
the Features of ISUZU Vacuum Trucks:
With vaccum pump.Absolute working pressure: 400Pa;
Academic suction speed: 45L/s
Rotation speed: 500rpm
Vacuum pump is drived by PTO, to self-suck and self-discharge by four-way valve.
This truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump
1.ISUZU Vacuum Trucks, Sewage Suction Trucks include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Self-discharge and self-suction.
3. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
4. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
| Specification |
the Specifications of ISUZU Vacuum Trucks:
ISUZU 4cbm sewage truck | |||||
Chassis Model /Manufacturer | QL1071 | ||||
Overall Dimension | L × W × H | mm | 6090×1980×2710 | ||
Total Mass | Kg | 8500 | |||
Loading weight | kg | 4000 | |||
Kerb Weight | Kg | 4350 | |||
front overhang/rear overhang | 1015/1715 | ||||
Engine | Model/Rated Power | 4HK1-TCG40 88KW/120HP | |||
Emission Standard | Euro 4 | ||||
Displacement | 2999L | ||||
manufacturer | ISUZU motor Co., Ltd. | ||||
driving type | 4*2 | ||||
Steering Type | Powering steering | ||||
Type & Size of Tyre | 7.00-16 | ||||
Tread( front/rear) | 1504/1425 | ||||
Front axle | 2.5T front axle | ||||
Rear axle | 4.8T rear axle | ||||
Wheel Base | mm | 3360mm | |||
Number of leaf spring of suspension | piece | 8/6+5 | |||
Max Speed | Km/h | 100 | |||
Other | Volume of tank: 4000Litres With vacuum suction pump Vacuum pump is droved by PTO, to self-suck and self-discharge by four-way valve. this truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump
With USB, Power steering, air condition. With ISUZU MSB 5 forwards gear box. 2.5T front axle, 4.8T rear axle. | ||||
| Pictures |
the Pictures of ISUZU Vacuum Trucks:

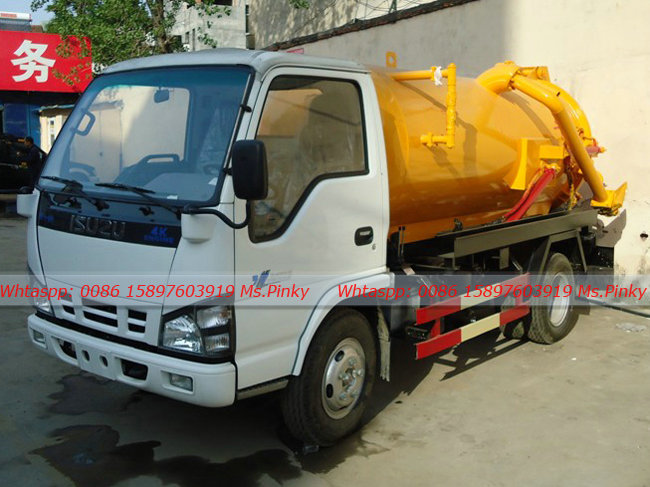

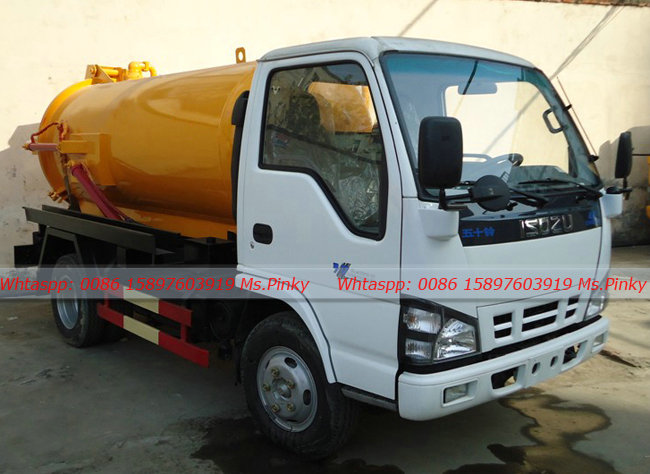

ISUZU Vacuum Trucks 4000Liters, Dumper Tank body by two side cylinder.
rear cover opened by hydraulic cylinder. it is big different with fecal suction truck.
Keywards: ISUZU Vacuum Trucks, ISUZU Sewage Suction Trucks, ISUZU Septic Tank Trucks, ISUZU Water Jetting Trucks, ISUZU Toilet Trucks
ISUZU Sludge Suction Truck, China Vacuum Sewage Suction Trucks.
More information, please contact with Miss Pinky
Whatsapp: 0086 15897603919
