1. 8T-10Tons Water And Foam
2. ISUZU 280HP 6HK1-TCSG40 Ruor 4 Engine
3. Fast 9JS119TA 9-Shift Gear Box
4. 10.00R20 tyre
5. power steering, electrical window, USB, A/C
Website:www.isuzutruckcn.com
E-mail:pinky@runlitruck.com
Tel:+86 15897603919 (Whatspp)
Tel:
Fax:
Add:No.77, Century Ave., Suizhou City, Hubei, China
Heavy Duty ISUZU FVZ Fire Trucks Water and Foam Fire Fighting Trucks 8T-10Tons
FVZ 280HP ISUZU Fire Trucks, Heavy duty fire Vehicle with water and foam sparying fire. equipment middle and low pressure fire pump and fire monitor. sandwich PTO, splashing-type lubricate, can put out fire when driving.ISUZU FTR Fire Truck good performance and best price.
FVZ ISUZU Fire Truck name Water Fire trucks, ISUZU Water Tank fire Fighting truck and Water Pumper Trucks
| Specification |
Specification of ISUZU FVZ Fire Trucks with Water and Foam Tank:
ISUZU FVZ Heavy duty Fire Truck | |||
Chassis Model /Manufacturer | ISUZU FVZ QL1250 | ||
cab | Double cabin (four doors ) | ||
Overall Dimension | 10325×2500×3750mm | ||
Kerb Weight | 12060 Kg | ||
Fuel type | Diesel | ||
Fuel consumption | 18L/100km | ||
Ground clearance | 248mm | ||
Engine | Model/Rated Power | 6HK1-TCSG40 | |
Displacement/ power | 7790/206kw （280HP） | ||
Emission Standard | Euro 4 | ||
manufacturer | ISUZU motor Co., Ltd. | ||
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging | |||
driving type | 6*4 | ||
Wheel base | 4350+1300mm | ||
Front/rear tread | 1855/1855 | ||
Front axle | 7T front axle | ||
Rear axle | 18T*2 rear axle | ||
Steering | Power steering | ||
Cultch | Single dry iaphragm spring cultch | ||
Brake system | Air brake, exhaust brake、air cut brake | ||
Gear box | FAST 9 Shift gear box | ||
Number of leaf spring of suspension | 9/14 | ||
Type & Size of Tyre | 10.00R20 | ||
Max Speed | 90Km/h | ||
technical parameter of fire fighting body | |||
Liquid tanker | Volume: total 8000L, (among, water: 8000L; foam: 4000L ) | ||
Fire fighting pump and pipeline system | Model of Fire fighting pump: CB20.10/30.60 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s Installing type: central or rear | ||
Fire fighting monitor | Model: PP32 Range: water≥50m foam≥45m Pressure: 1.0Mpa. | ||
PTO | sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
Material of carriage | Carriage is made of high quality carbon steel and Aluminum embossed sheet | ||
| Pictures |

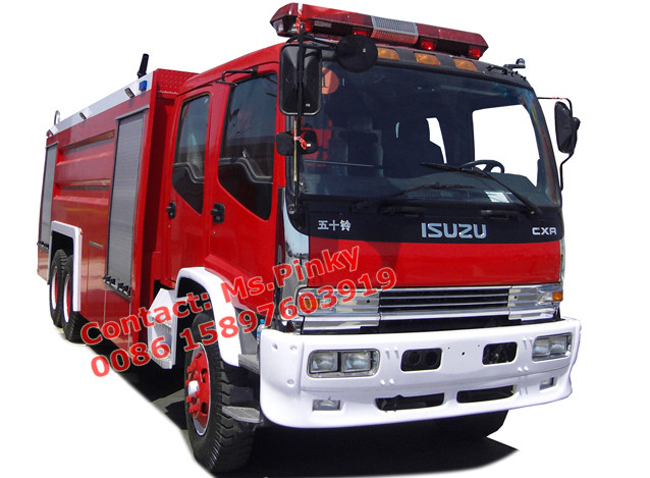

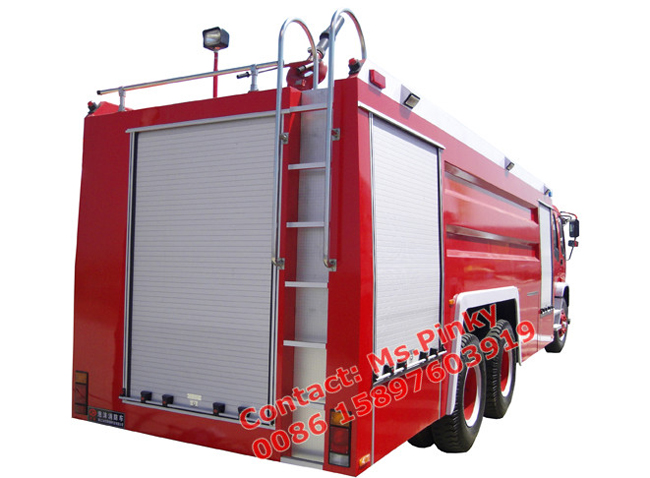

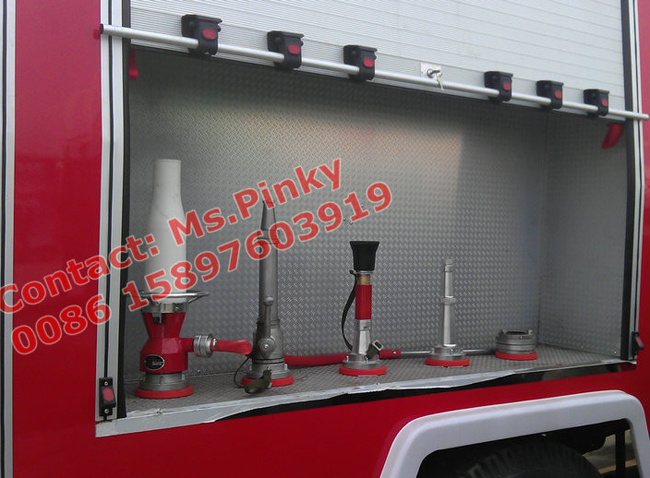

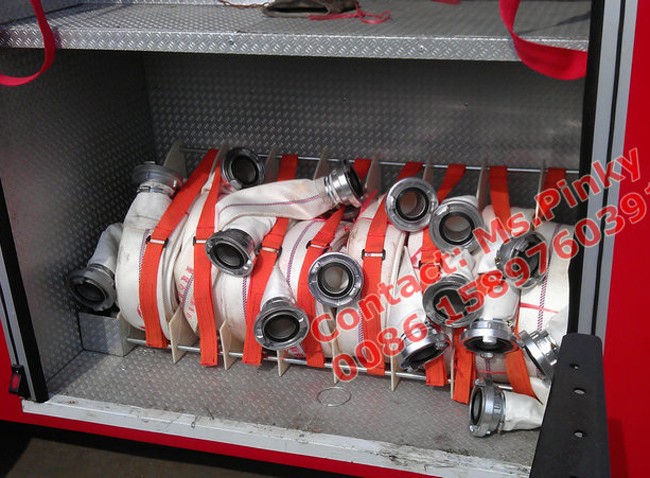

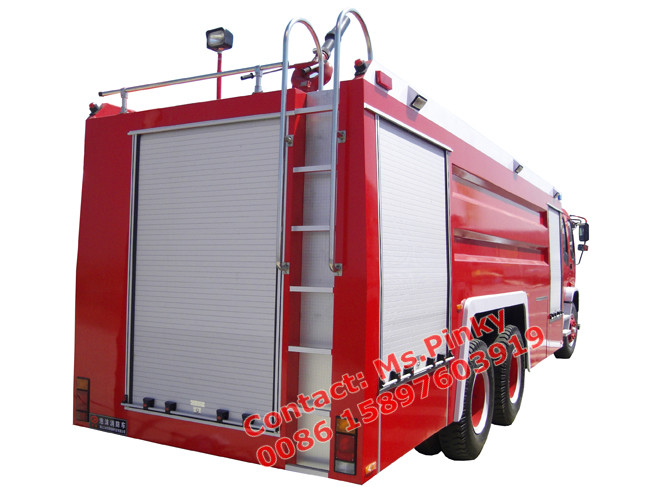

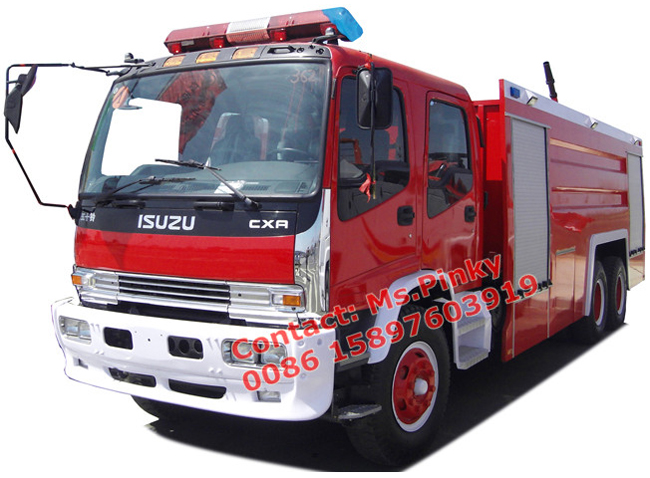

the picture of ISUZU FVZ Fire Trucks With Water and Foam Tank:
