FVR 240HP ISUZU Fire Truck 8Tons Fire Water Trucks -ISUZU SPECIAL TRUCKS MANUFACTUER

ISUZU Fire Truck, Water Fire Fighting Trucks, The fire trucks refitted by our company are adopted second-classis and special components includes tank ,pump chamber, equipments box, PTO, drive system, pipeline system and electric devices. Be widely applicable to fire station of public security, petrochemical and mining enterprises, forests, ports erminals and other departments, can rapidly approach the scene of the fire and start working for all kinds of fire. Its an ideal equipment of fire fighting.

240HP FVR ISUZU water and foam tank Fire Trucks:

1. 6HK1-TCNG40 240HP Engine

2. ISUZU 6Forwars MLD

3. tire: 10.00-20 or 10.00R20

4. power steering, title cabin. four doors

5. Water Capacity: 4Tons -6Tons

6. Foam tank Capacity: 2Tons -2Tons

Specification

Specification of FVR ISUZU Fire truck with water and foam:

ISUZU FVR 240HP Fire Truck
Chassis Model /Manufacturer			ISUZU QL1150WQFR
cab			Double cabin (four doors )
Overall Dimension			9600×2500×3920mm
Total Mass			20,290Kg
Rated Payload			10000Kg
Kerb Weight			9900Kg
Engine		Model/Rated Power	6HK1-TCNG40 Euro 4
		Displacement/ power	7790/178kw （240HP）
		Emission Standard	Euro Ⅲ
		manufacturer	ISUZU motor Co., Ltd.
		Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging
driving type			4*2
Wheel base			4500mm
Front axle			6.3T front axle
Rear axle			13T rear axle
Steering			Power steering
Cultch			Single dry iaphragm spring cultch
Brake system			Air brake, exhaust brake、air cut brake
Gear box			ISUZU MLD six forwards
Number of leaf spring of suspension			9/14
Type & Size of Tyre			10.00-20
technical parameter of fire fighting body
Liquid tanker	Volume: total 5000L, water: 5000L Material: high quality carbon steel plate, anti-rust treatment inside. Structure: welding, there is baffle plate inner. Equipment: 1 manholes, with speediness lock and turn on equipment. 1 overflow mechanisms 1 drainage exits
Fire fighting pump and pipeline system	Model of Fire fighting pump: CB10/40 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s Installing type: central or rear Pipeline system: Suction pipeline: there is ?125mm water inlet, can sop natural water source and sop the water from liquid tanker. Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeline with dia.≥80mm on the top of tanker. Discharge remaining water system: to protect pump and all ball valves,
Fire fighting monitor	Model: PP32 Range: water≥50m foam≥45m Pressure: 1.0Mpa.
PTO	sandwich PTO, splashing-type lubricate, can put out fire when driving.

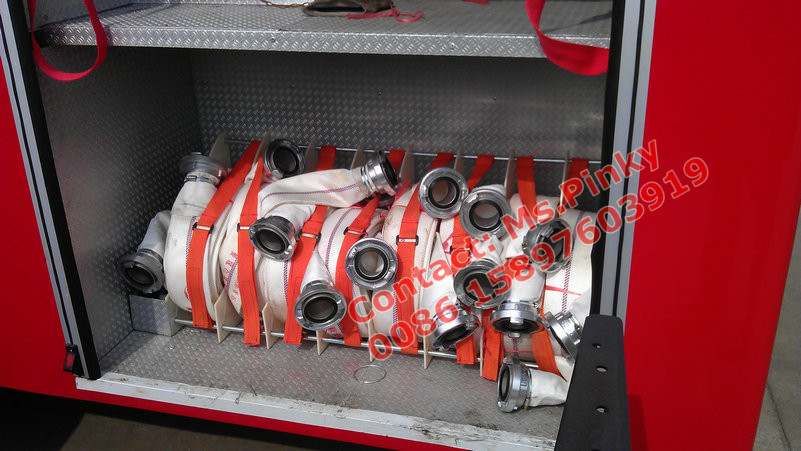

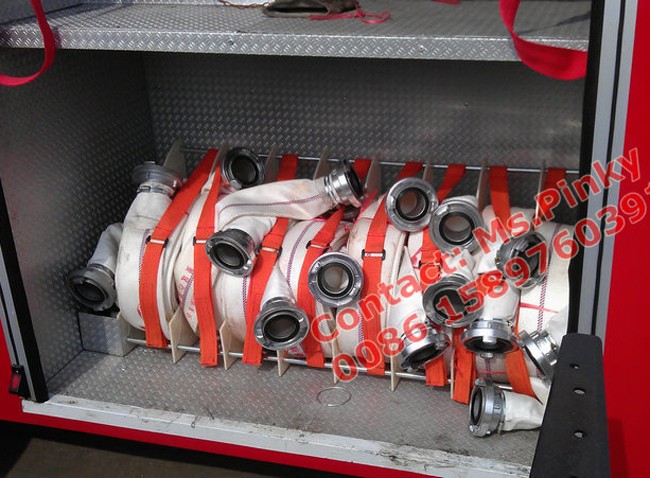

equipment of ISUZU Fire Trucks:

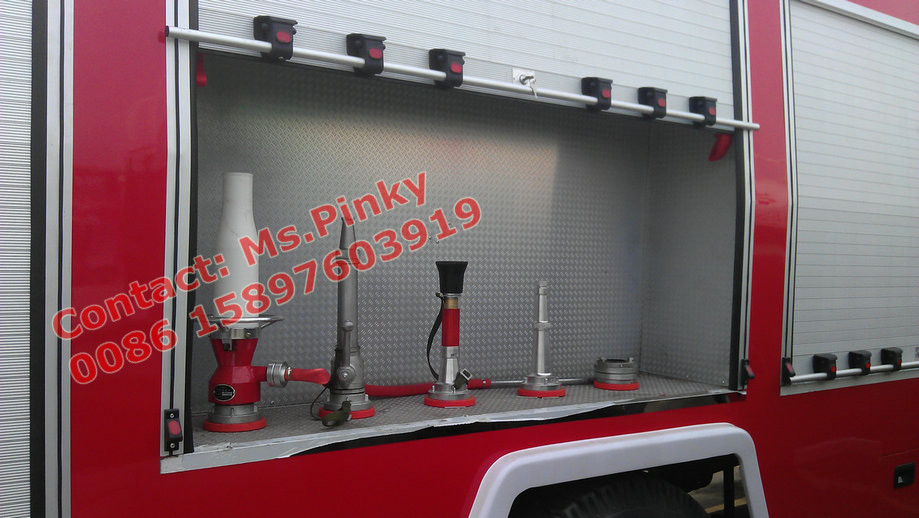

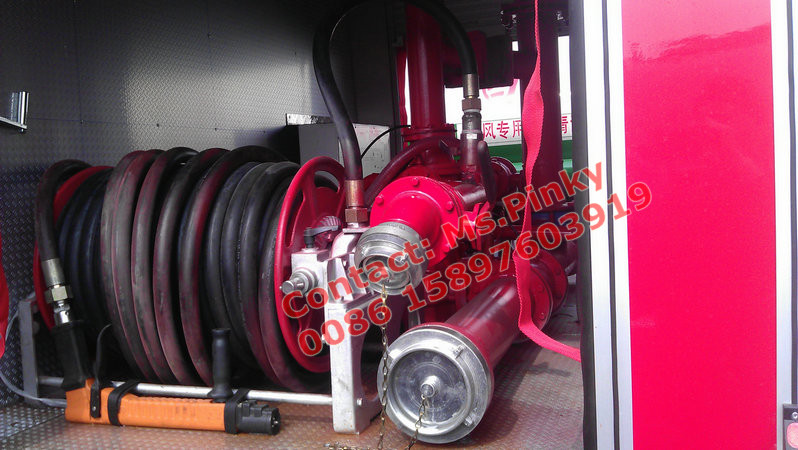

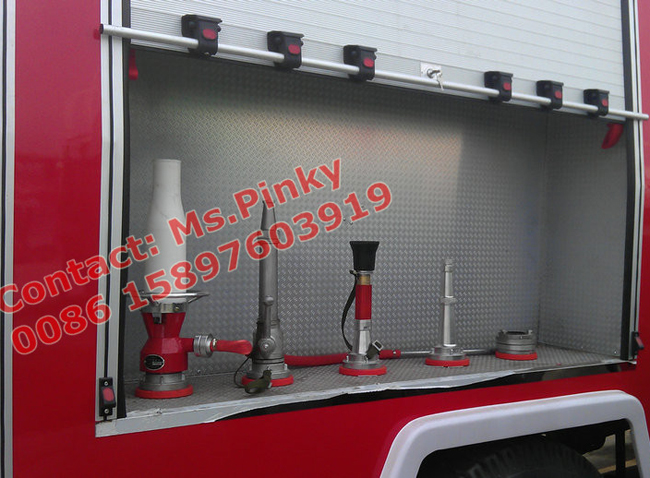

40m high pressure hose monitor with 10pcs different spray nozzle:

Photos

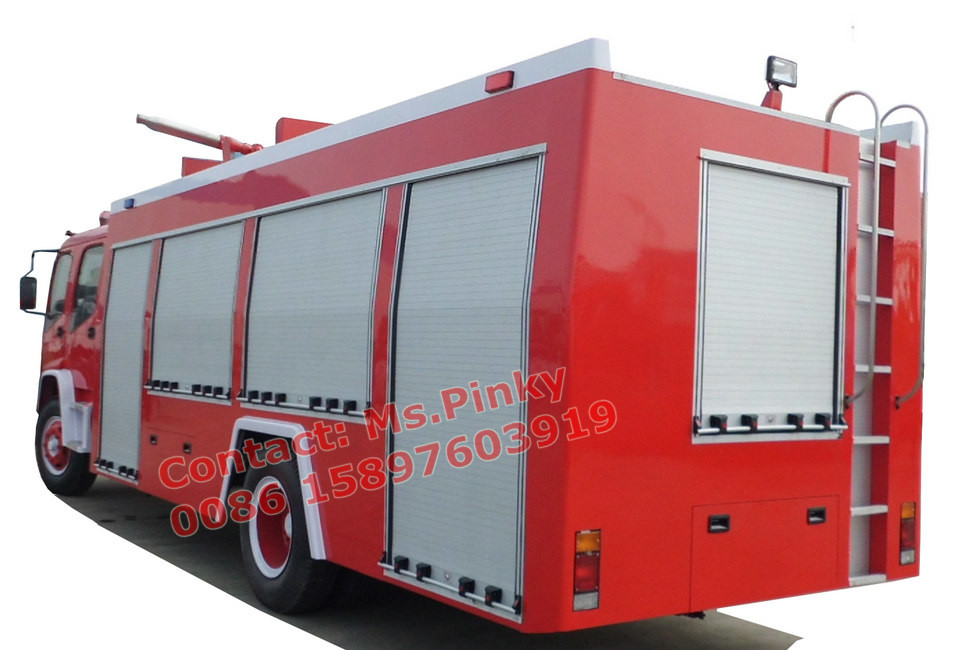

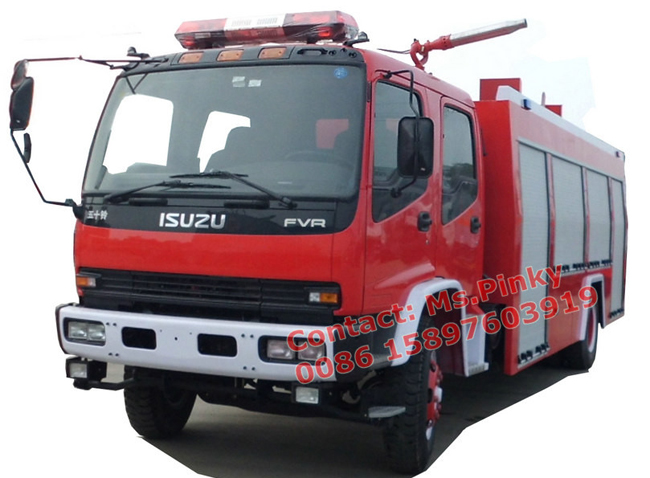

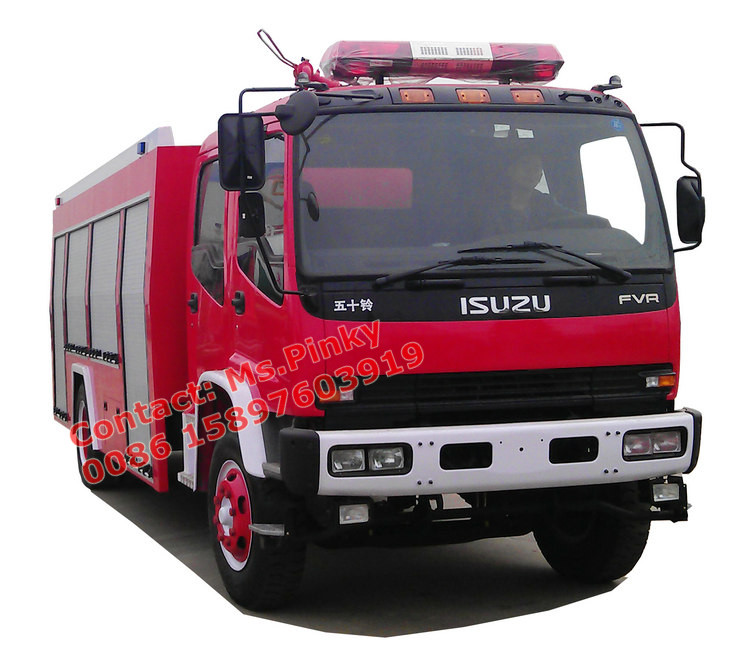

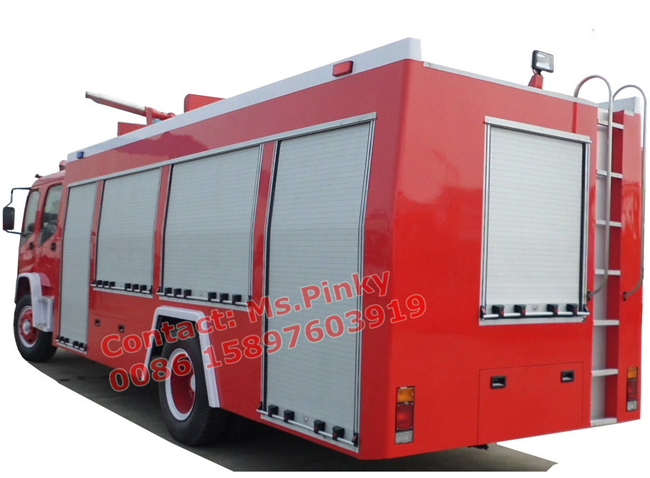

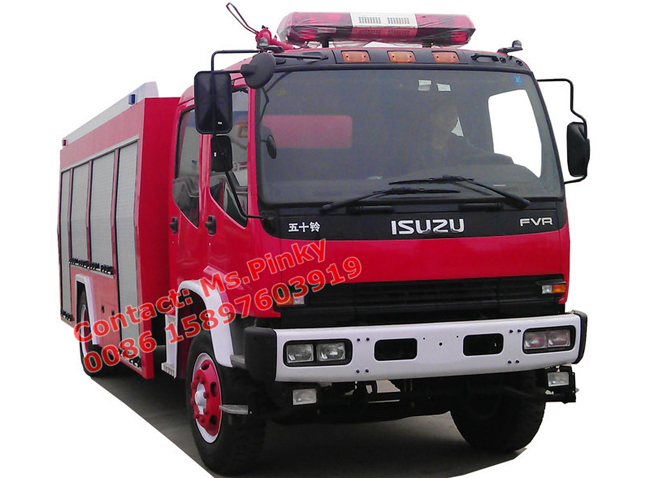

The picture of ISUZU Fire Trucks:

ISUZU fire truck, more detail, please contact with Mrs Pinky, Whatsapp: 0086 15897603919
