460HP ISUZU Heavy Duty Truck 15cbm to 18cbm Compressor Garbage Truck
ISUZU Garbage Compactor Truck
Chassis MODLE: ISUZU
Color: White
Drive type: LHD
Cabin: with A/C
Engine Model:6WG1-TCG51
Engine power: 460HP
Tyre: 315/80R22.5
Capacity:15-18m3
the specification of 460HP ISUZU Heavy Duty Truck 15cbm to 18cbm Compressor Garbage Truck:
| Products Technical Specification |
| Type | ISUZU Rear Loader |
| Brand | ISUZU 6*4 |
| Cab | Power steering, one bed with air condition |
| Vehicle Description |
| Overall dimensions（mm） | 10600×2600×3500 |
| Curb weight(vehicle) (kg) | 15000 |
| Loading capacity (kg) | 10000 |
| Max speed (Km/h) | 95-120 |
| Engine |
| Mode | 6WG1-TCG51 |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging |
| Max. power/rotated speed | 460HP /2000(rpm) |
| Max. torque | 1422（N.m） /1400(rpm) |
| Displacement(ML) | 9839 |
| Company of engine | ISUZU |
| Compression ratio | 17.3:1 |
| Emission level | Euro 5 |
| Chassis Description |
| Wheelbase | 4565+1370 mm |
| clutch | hydrodynamic remote control transmission |
| Front axle | Elliot I-beam type 7T ABS |
| Rear axle | Driving axle, full-floating axle shaft |
| 13T×2 |
| Tyre | 315/80R22.5 |
|
|
| Gear Box | Fast 12forwards 2revers |
| Other | air conditioning, steering assist, |
| central locking, power windows |
|
| Rear Loader | Capacity: 15-18,000Litres |
| With rear and front working light, operate panel one both side of rear of garbage box, with discharge valve. |
| Garbage bin, bottom thickness: 5mm, side wall and top thickness: 4mm. |
| 1. Compress garbage tuck in clued garbage carriage, sewage tanker, a packer, scraper, shovel, multi-way reversing valve and hydraulic system. |
| 2. With convenient and efficient garbage collection function, automatically repeated compression and creep function, high compression ratio, large loading capacity, automatic operation, good sealing. |
| 3. The dirty water is come into the sewage tank during compression; the main part is high quality imported parts. |
| Painting | One anti corrosion and zinc-rich primer and final painting will be accordance with customer need. |

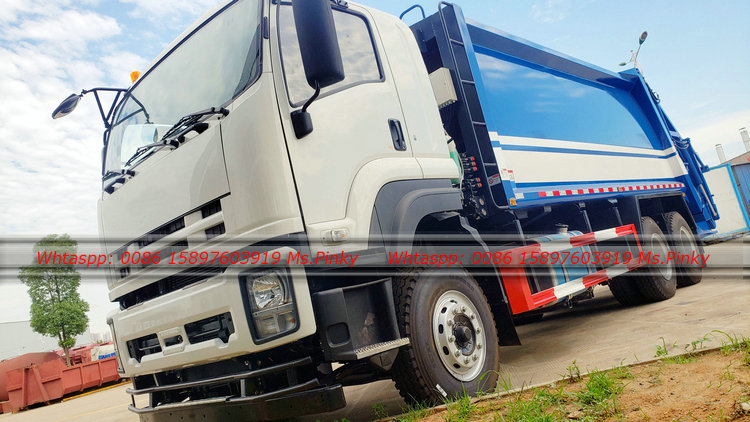

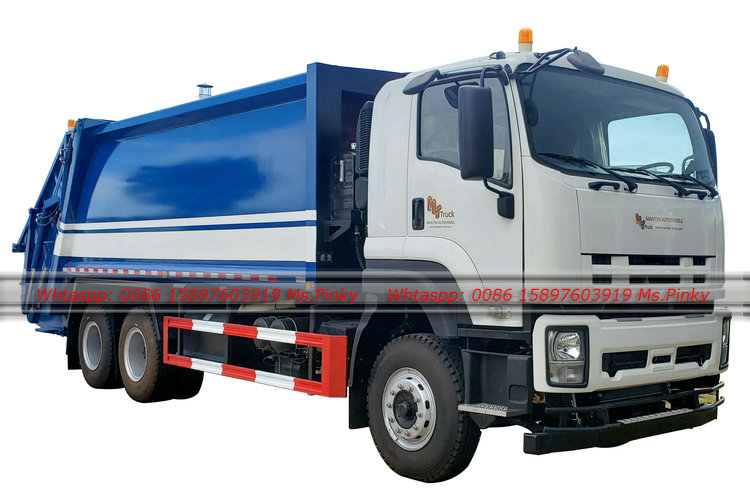

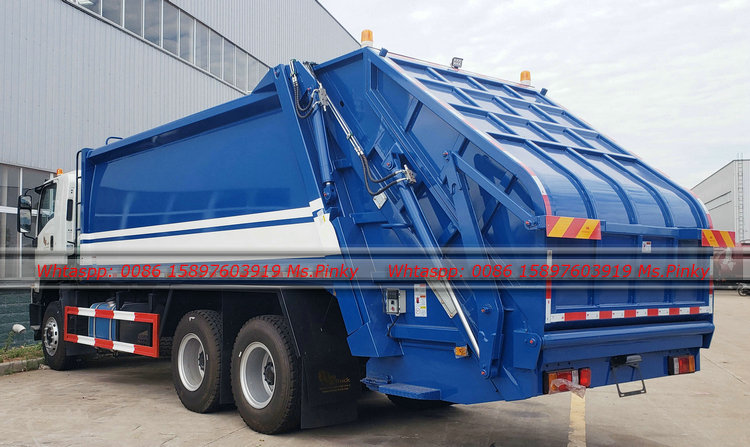

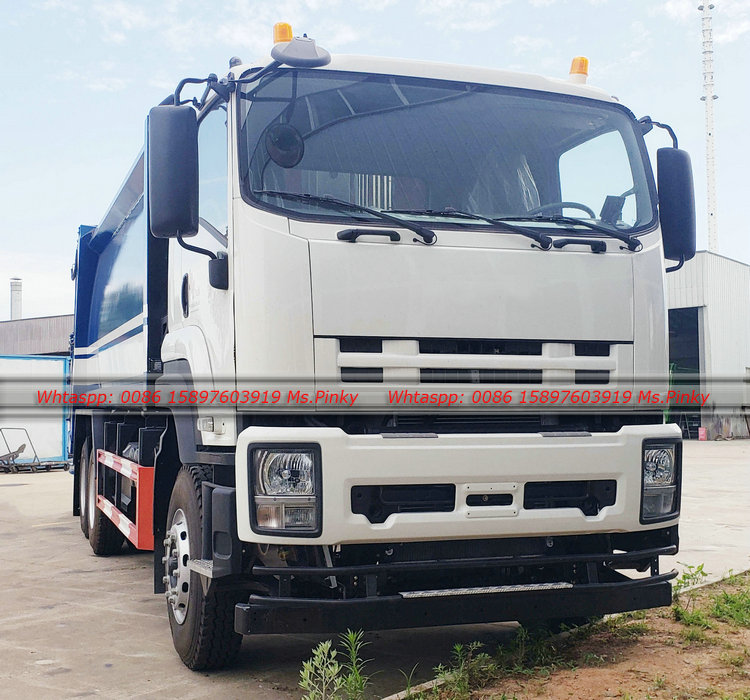

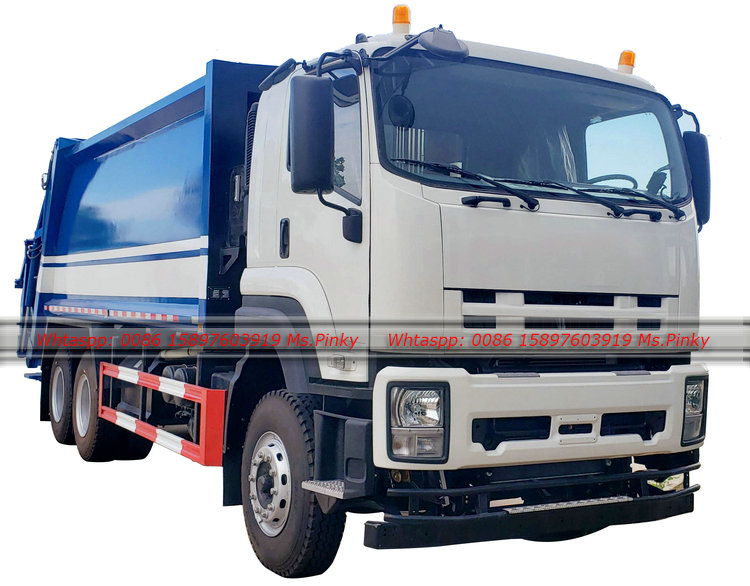

the photos of 460HP ISUZU Heavy Duty Truck 15cbm to 18cbm Compressor Garbage Truck:
