240HP ISUZU FVR Water Truck 12Tons Water Tank Trucks
240HP ISUZU FVR Water Truck 12Tons Water Tank Trucks
Feature of ISUZU FVR Water Trucks:
1. ISUZU 240HP 6HK1-TCNG40 6Cylinder
2. ISUZU MLD Forwards;
3. 10.00R20 Radial Tire.
4. with air Conodition. power steering, radio. ABS
5. With Water Pump.
6. Water Tank body capacity: 12000Liters
| Specification |
The Specification of ISUZU FVR 240HP Water Trucks 12Tons Water Tank Trucks:
ISUZU Water Tank Truck | ||||
Chassis Model /Manufacturer | QL1160 | |||
cab | With sleeper | |||
Overall Dimension（ L×W×H） | mm | 9100*2500*3000 | ||
Total Mass | Kg | 22525 | ||
Rated Payload | Kg | 12000 | ||
Kerb Weight | Kg | 10300 | ||
front overhang/rear overhang | 1335/1700 | |||
Engine | Model/Rated Power | 6HK1-TCNG40 178KW/240HP 6 cylinder | ||
Displacement | 7790CC | |||
Emission Standard | Euro 4 | |||
manufacturer | ISUZU engine | |||
Type & Size of Tyre | 10.00R20 | |||
driving type | 4×2 | |||
Wheel Base | 4500 mm | |||
Max Speed | 90 Km/h | |||
Capacity of tank body | 12000Litres | |||
Material of tank body | Carbon steel 5mm thickness | |||
Equipped with front(rear,side)sprinkler(sprinkling width≥14m ) Equipped with pump(suction lift:7.5m) Rating speed rotation: 1450r/min Flux: 60m3/h | ||||
ISUZU MLD 6 forwards + 1 reverse, with air condition, power steering, Electrical glass, USB System Brake: air Brake Front Axle( Loading capacity): 6.3T Rear Axle( Loading Capacity): 13T Battery: 12V*2 115Ah*2 200Lt Fuel Tank | ||||
| Photos |

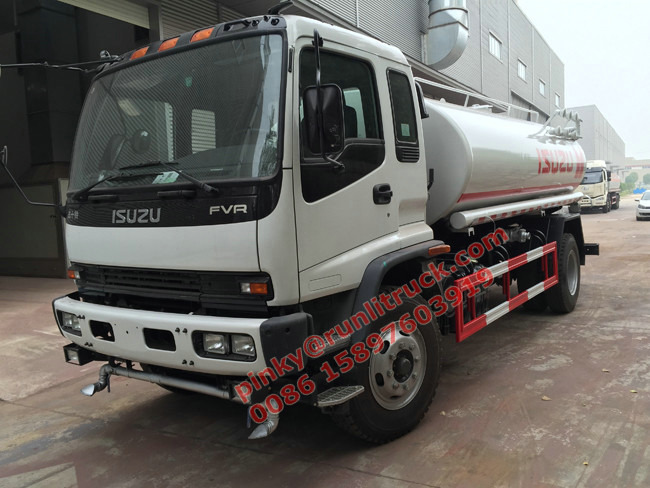

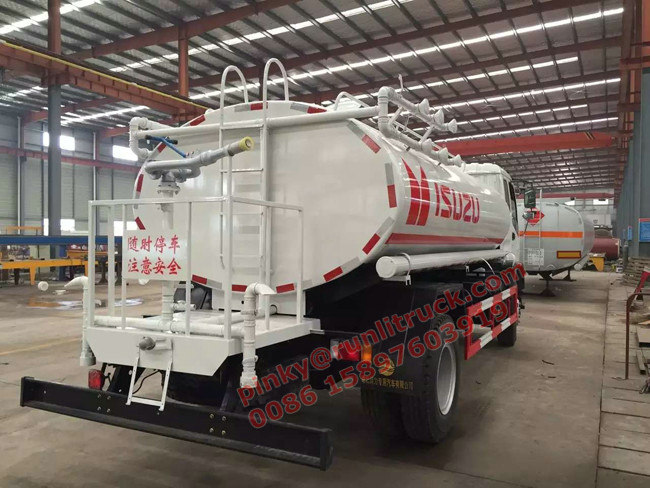

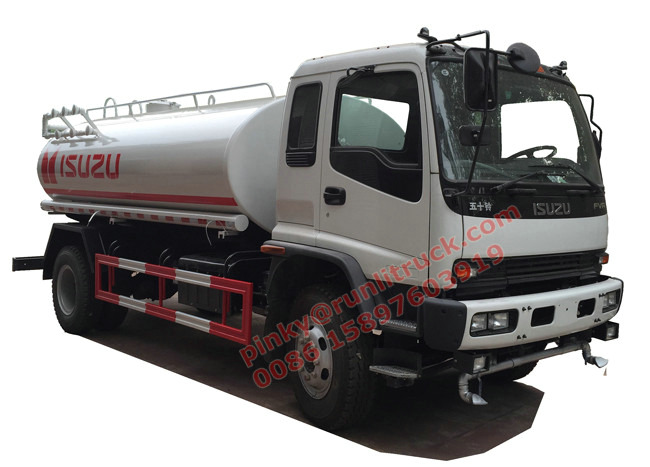

the pictures of FVR ISUZU Water Truck:

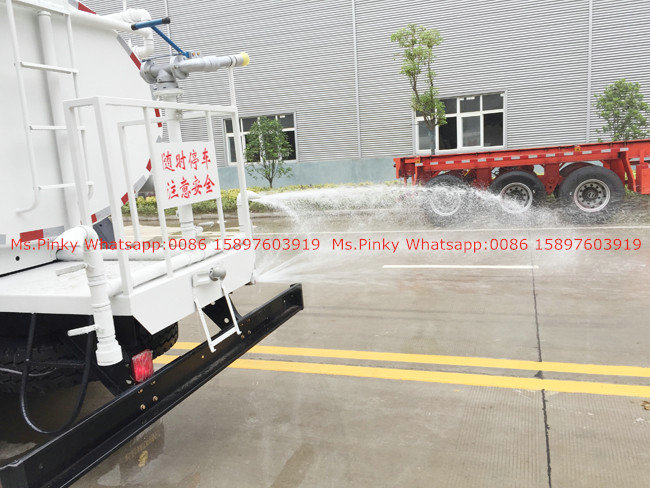

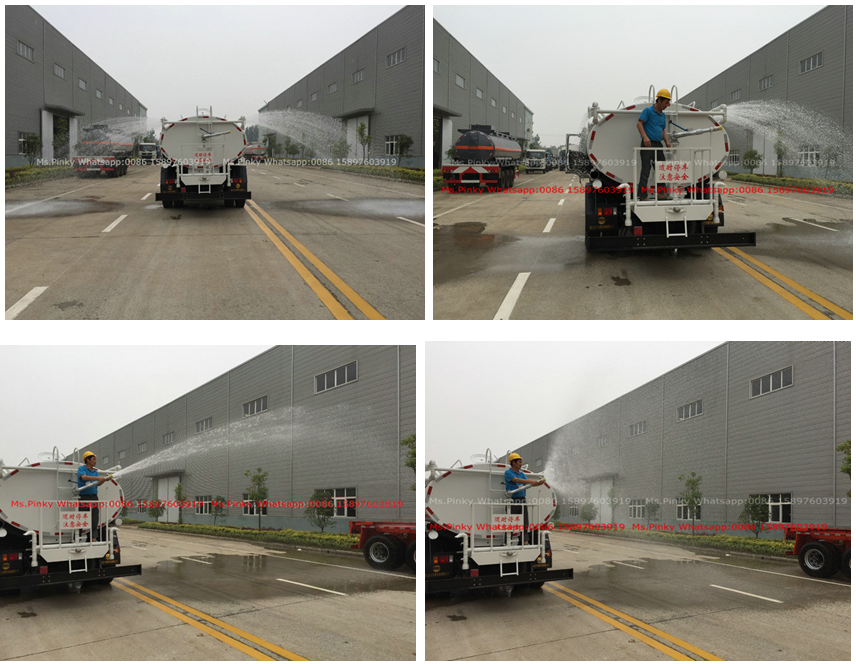

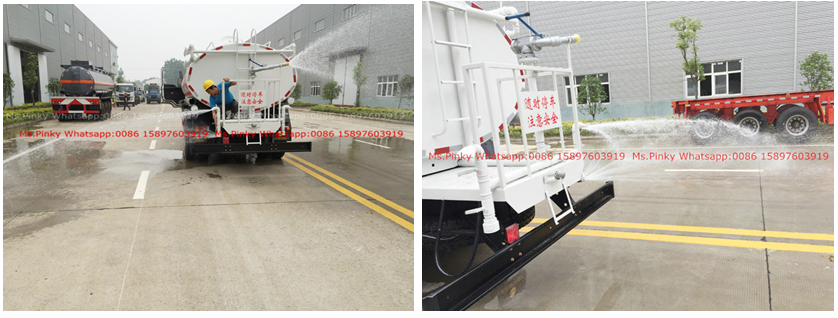

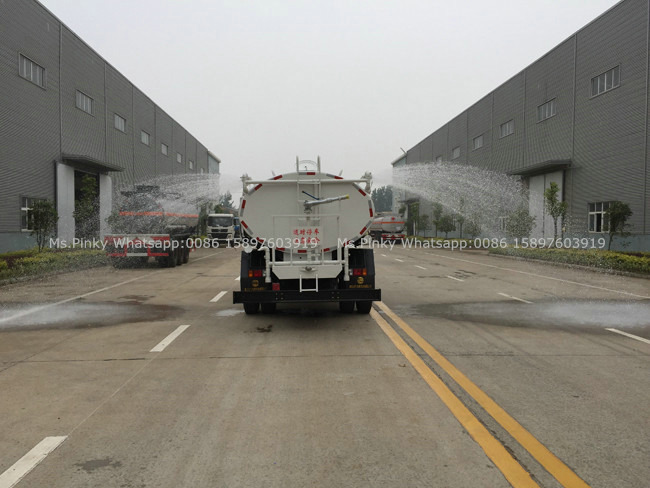

ISUZU FVR Spraying Working function, side rear spraying Nozzle, spraying monitor:
